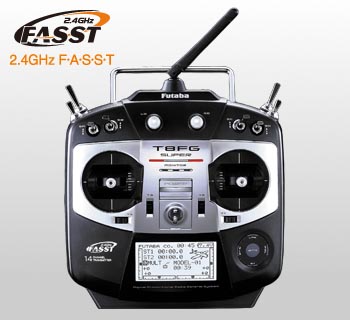

Futaba 8FG Super 2.4GHz Computer Systems  [8FGSuper]

"Super-sized" with increased businesses - and CGY750 gyro assistance!

The first 8FG have been top 2.4GHz radio value available. Now, for the same price, the 8FG Super provides six additional channels plus unique computer software with menus tailored to Futaba's super-fast CGY750 gyro. Suggested by Bobby Watts, Matt Botos and Kyle Stacy, it's the first radio that really assists flybarless helicopters. And yes it's well suited for most of the applications, too...a smart choice for ANY forward-looking flier.

Features:

• Expanded with 14 total transmitter sites X 12 proportional and two switched.
• Included R6208SB receiver's PWM (Pulse Width Modulation) channels help around 8 standard analog or electronic servos and yes it handles just as much as 18 websites whenever along with an S.Bus system.
• Gyro menu supports 3-axis gyros plus it's entirely tailored towards the CGY750.
• Consumer menu permits pilots to personalize and show often used functions.
• VPP (adjustable Pitch Propeller) compatibility could possibly be set to three conditions for throttle and pitch fold.
• Swash trim may be modified from swash display.

Continued through initial 8FG:

• SensorTouch™ development maximizes navigation simpleness.
• Numerous factory-defined mixes permit you to prepare like a specialist.
• Minimal latency and cutting-edge 2048 quality combine for fast, accurate Real-Time Response™.
• Accepts 32MB to 2GB SD memory cards* include just as much memory once you really need.

*SD memory maybe not included

Overview:

• 12 proportional networks
• 2 switched websites
• integrated FASST 2.4GHz design
• 2048 quality
• SensorTouch™ development
• Airplane, heli & glider pc software
• 20-model internal memory, endless with sdcard
• suitable for 32MB to 2GB SD Memory Cards*
• Mode 1-4 selectable
• Customizable specific menu
• Immediate usage of timers, channel mode & model selection
• 2-touch use of system, linkage & model menus
• Assignable switches/functions
• 10-character individual & model naming
• Model choose, copy & reset
• Information transfer
• All-channel & electric batteries fail-safes
• Sub-trims, servo reversing, dual rates, expo & EPA with split limitation settings
• Digital trims & memory, with action or percent display choice
• 128 x 64 backlit LCD w/auto-off timer, normal/large timer display choices, adjustable comparison & brightness
• Servo duration w/bar graph shows
• Model & system timers
• Trainer system w/channel/function options
• Sticks w/ball-bearing gimbals, size & anxiety modifications
• Stick calibration menus

Airplane Features:

• 7 wing sorts
• 5 programmable mixes, plus:
• Aileron/Rudder mix
• Rudder/Aileron mix
• Rudder/Elevator mix
• Snap roll
• petrol mix
• 5-point throttle fold
• Throttle delay
• Gyro Function w/up to 3 gyro costs
• engine menu w/speed modification
• adjustable pitch prop support

Glider Features

• 10 wing types
• 5 programmable mixes, plus:
• Aileron/Rudder mix
• Rudder/Aileron mix
• 5 conditions w/delay per channel
• 4 electronic mixing systems
• Gyro functions w/separate costs for 3 gyros
• engine menu w/speed adjustment

Helicopter Features

• 6 swash dish sorts
• 5 programmable mixes, plus:
• 4 swash mixes (aileron/elevator, elevator/aileron, pitch/aileron & pitch/elevator)
• 3 throttle mixes (to aileron, elevator & rudder)
• 5-point throttle & pitch/rudder combining
• 5 conditions w/delay per channel
• 5-point throttle & pitch curves
• Throttle hold
• Hovering throttle & pitch
• High/low pitch expenses
• 3-Axis gyro help with 3 different rates
• Governor functions

R6208SB 2.4GHz FASST 8/18 Channel S.Bus High-Voltage Receiver

• The 8FG Super's R6208SB receiver takes many batteries, from 4-cell NiCd and NiMH packs to 2S whole life and LiPo packages, without any regulator required. PWM (Pulse Width Modulation) channels provide support for around eight standard analog or electronic servos. Utilizing the S.Bus slot, it handles around 18 systems and makes incorrect servo-channel hookups impossible. The R6208SB also features a high-speed mode that delivers ultra-fast framework rates on channels 1-6.
• High-speed mode can be acquired simply on stations 1-6 and requires utilizing electronic (including brushless electronic) servos. Those sites 7 and 8 which run simply in normal mode may be designed with either analog or digital servos.
