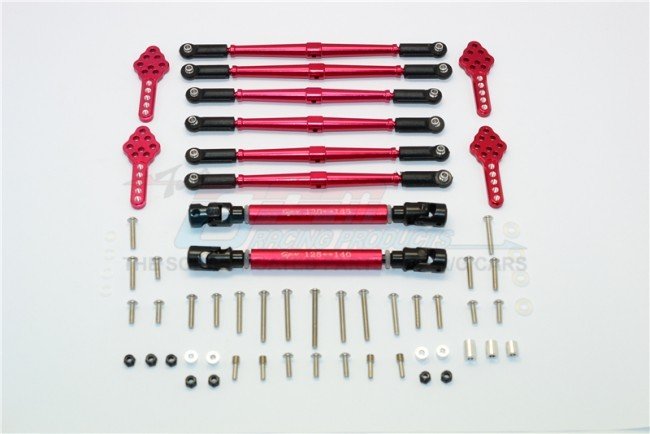

This method includes :
Stainless metal Button Head Screw
3*30 - 1pc
3*25 - 4pcs
3*20 - 3pcs
3*16 - 8pcs
3*10 - 8pcs
Aluminium Collars
3*6*4 - 4pcs
3*6*6.5 - 1pc
3*6*7.5 - 1pc
3*6*9 - 1pc - 4pcs
M4*2.5*12 Screw Shaft
O-Ring
4*2.5 - 4pcs
4*1 - 4pcs
3MM T Lock Nut - 7pcs
Product major function & use :
1. raise the height regarding the framework, expand the crawling angle especially in complex crawling rocky landscape
2. major Shaft is upgraded from CVD see universal move shaft cross browse obtain a larger angle of steering
3. Considering various holes from damper meal, they could be ready enable the dampers become modified in many different height.
Lift the automobile from 77mm ground approval to 87mm ground approval can guarantee the crawling perspectives be bigger plus capable of face tougher high traction landscape. This combination is getting ready to connect and play. We now have measured each tie pole with in fact accurate dimension to stop number of them is ideal without force during crawling.
Original height of chassis ground clearance 77mm, this lift combination gets the height of 87mm, with a 10mm height increase
Front top framework url tie pole : Midpoint 130mm
Front paid down framework website link tie pole : Midpoint 130mm
Rear compensated framework hyperlink tie pole : Midpoint 140mm
Adjustable primary shaft : lengthy main shaft 125mm-140mm, fast primary shaft 130mm-145mm
