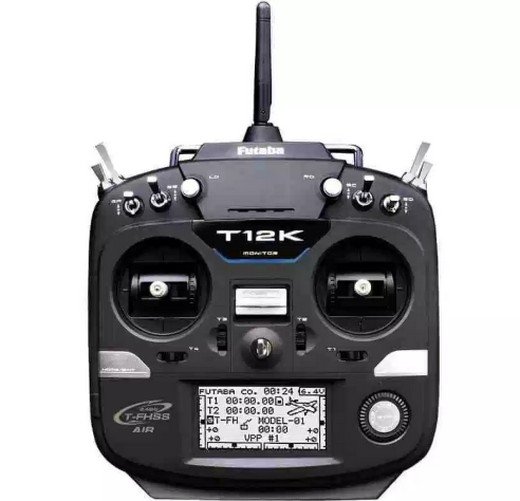

Futaba 12K 14-Channel 2.4G Transmitter w/R3008SB Receiver  [12K]

Made out of the rock-solid Futaba S-FHSS and T-FHSS protocols, the 12K works together with nearly a variety of Futaba receivers to allow for modelers' demands. The 12K can go and get telemetry information through T-FHSS protocol. Simply install Futaba telemetry sensors (provided separately) observe journey information, accept alerts during journey and much more. These sensors enable pilots to keep an eye fixed fixed fixed on battery pack voltage, altitude, cost alongside key journey functions.

And telemetry, the 12K are employed with S.Bus2 gear to include many servos, gyros and many more to set-ups with less cables. Pilots with non-telemetry set-ups takes advantage of the interference-free S-FHSS protocol. A huge, backlit LCD display, expandable 30-model memory, a 6V 1800mAh NiMH battery and charger are only more connected to features the 12K provides.

Choose from airplane and heli 12K systems using the R3008SB telemetry receiver included. FPV/drone pilots will appreciate the lightweight, compact R3001SB FPV drone receiver optimized about applications.

Transmitter Properties:

• Web sites: 14 (12 proportional, 2 switched)
• Compatible with T-FHSS and S-FHSS protocols
• Six 3-position switches, two 2-position switches, two slider levers, two rotary dials, four electronic trims and two push buttons for fast, fast access
• Headphone plug, trainer slot and S.Bus plug-in
• S.Bus2 system enables many servos, gyros and telemetry sensors with an assortment cables
• Model types: six forms of main wing with three end sorts for airplanes, six swash kinds for helis and multi-rotor functions
• Enhanced stick feel with adjustable lengths and stress
• Dual rates/exponential
• Included 6V 1800mAh NiMH power packs and charger
• Large, backlit LCD display with adjustable comparison for easier reading. Push/dial procedure simplifies set-up
• Micro space for storage unit slot for saving model information and free system updates. (SD-32MB to 2GB; SDHC-4GB to 32GB, perhaps not included)
• Vibration function alerts pilots to various alarms and timers, besides to noise
• 10-character model naming
• Expandable 30-model memory
• 5 journey conditions (Helicopter and Glider model choices)
• 5 customizable programmable mixes
• Servo be sure that you servo destination display
• Fuel mixing
• Stick calibration
• Servo speed
• Logic switching

Airplane Characteristics:

• 6 wing kinds
• 3 tail wing kinds
• 5 journey modes
• Pitch curve
• Throttle bend
• Throttle wait
• Aileron differential
• Flap setting
• Aileron to camber flaps
• Aileron to brake flaps
• Aileron to rudder
• Rudder to aileron
• Camber mix
• Elevator to camber
• Camber flap to elevator
• Butterfly function
• Trim mix
• Air stopping system
• Gyro mix
• V-Tail
• Ailevator (double elevator)
• Winglet
• Engine rate
• Rudder to elevator
• Snap roll
• Multi-engine functionality
• Airbrake
• Helicopter F

Helicopter Properties:

• Six swash types
• Pitch fold and pitch trim
• Throttle fold and throttle hover trim
• Throttle hold
• Swash band
• Pitch to needle
• Pitch to rudder (revolution mixing)
• Gyro blending
• Governor mixing
• Timer settings
• Throttle % timer

Glider Characteristics:

• Glider-specific functions
• 6 wing kinds
• 3 end wing types

Multirotor Characteristics:

• Throttle stick location warning
• Gyro Sense
• Flight Mode
• Throttle Curve
• Throttle Delay

R3008SB Receiver Properties:

• T-FHSS protocol
• Double Antenna Diversity
• S.Bus/S.Bus2 ports (S.Bus2 slot for bidirectional telemetry sensors)
• 8-channel PWM old-fashioned ports
• High voltage
• Battery fail-safe
• External voltage slot: 0-70V DC
• Power requirement: 4.8-7.4V
• Dimensions: 0.98 x 1.86 x 0.56 in (24.9 x 47.3 x 14.3 mm)
• Body fat: 0.36 oz (10.1 g)
