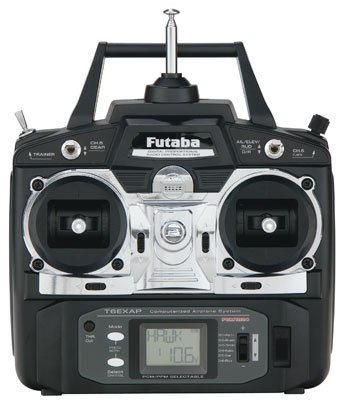

Futaba 6EXAP 6-Channel FM 40MHz/ R136F/ 4xS3003  [6EXAP_C1]

CHARACTERISTICS:

• Aileron, Elevator and Rudder double price switch - employ this modification to flip between two aileron, elevator and rudder control throw settings. The tosses could possibly be arranged but choose, but the majority of the time, whenever switch is up the throws are greater (higher-level) when the switch is down the throws are less (tremendous amount). This switch in addition flips between exponential expenses (if utilized).
• Flap control dial/Channel 6 - This dial operates the servo associated with channel 6 in the receiver when your model has flaps this is actually the control accustomed run them.Aileron/elevator control stick -Mounting point for optional throat strap.
• Trim levers (all) -Used to maneuver might or center host every servo as labeled inside diagram.
• Asking jack - Port for billing the transmitter batteries utilising the included electric batteries charger.
• On-off switch
• DATA INPUT lever - accustomed replace the values applying this various functions exhibited regarding LCD display.
• Liquid-crystal display (LCD) - shows development modes and values joined.
• MODE key - often scroll through and show the ten or eleven(PCM) different functions.
• SELECT key - often reveal the values the current function.
• Throttle-cut switch - to utilize the throttle-cut function, lower the throttle stick totally, then drive the throttle-cut key to fully shut the carburetor and shut the motor.
• Throttle/rudder control stick - runs the servos mounted on channel 3 (throttle) and channel 4 (rudder) into the receiver.
• Trainer switch - operates the trainer functions. To exert work as a trainer switch the transmitter should really be connected with another transmitter via. a trainer cable (available individually).
• Retractable landing gear switch/Channel 5 - modification runs the servo linked to channel 5 in the receiver if model has retractable landing gear this can be the control accustomed expand and retract the gear.
• Antenna - Radiates signals towards the receiver. Don't ever travel a model without completely expanding the antenna or even you will produce disruption to a lot of other modelers and decrease practical indicator range of the transmitter. The antenna could be removed and changed with another whenever it truly is accidentally broken.

INCLUDES:

• Futaba 6-Channel 6EXAP transmitter
• Futaba R136F Receiver
• Four Futaba S3003 Servo
• Change Harness
• Handbook

SPECS:

Transmitter

• T6EXAP Transmitter with programmable blending and 6-model memory.
• Transmitting on 40 / 72 MHz musical company.
• Os: 2-stick, 6-channel system
• Modulation: FM(PPM) and PCM
• Power supply: 9.6V NT8S600B Ni-Cd electric batteries or 12V alkaline battery pack
• Current drain: 250mA

Receiver

• R136F slim musical company, FM 6 channel receiver.
• Getting on 40 / 72 MHz musical organization.
• Type: FM, Dual conversion/FM, Solitary transformation
• Intermediate frequencies: 455kHz, 10.7MHz/455kHz
• Power requirement: 4.8V or 6V
• Present drain: 9.5mA @ 4.8V
• Size: 1.31 x 1.98 x 0.71" (33.4 x 50.3 x 18.1mm)
• fat 0.98oz (27.8g)

Servo

• S3003 standard servo with mounting gear and servo supply assortment
• Control system: Pulse width control,1.52ms neutral
• Power requirement: 4.8 or 6V (from receiver)
• Production torque: 44.4oz-in [3.2kg-cm] @4.8V
• Running price: 0.23sec/[email protected]
• Size: 1.59x0.78x1.41" [40.4x19.8x36mm]
• Body fat: 1.3oz (38.0g)
