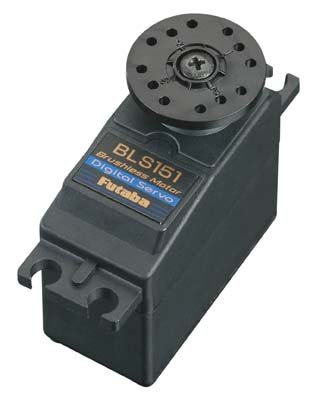

Futaba BLS151 Brushless Standard Air Servo  [BLS151]

FACULTIES:

• Standard size and fat to be utilized on some aircraft control surfaces
• At minimum five times stronger than brushed servos
• Double ball bearings and Samarium cobalt magnets
• Smoother procedure and greater opposition to jolts and vibration
• Same energy use as brushed electronic servos

INCLUDES:

Futaba BLS151 Servo with 0.83" (21mm) circular horn, 1.8" (45mm) circular horn, 1.25" (32mm) 6-point horn, 1.5" (38.8mm) 4-point horn, four
synthetic grommets, four metal eyelets, four 1.5 x 12mm mounting screws and instruction sheet

NEEDS:

Developing in aircraft, connecting linkage and linking to receiver

SPECS:

• Energy: 4.8V ONLY
• Speed: 0.15 sec/60?X @ 4.8V
• Torque: 133.3 oz-in @ 4.8V
• Size: 1.57 x 0.79 x 1.37" (40 x 20 x 34.8mm)
• Body fat: 1.59oz (45g)

REMARKS:

The BLS151 will work for high torque/high price applications.
Quite high current drain is normal at startup. Always use a 4.8V
NiCd battery pack for some of good use performance.

For complete performance of electronic servos use them simply with FM, PCM and
FASST systems. Avoid using electronic servos with AM systems.
