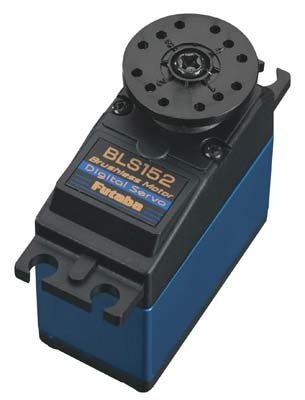

Futaba BLS152 Brushless Super High Torque Air Servo  [BLS152]

CHARACTERISTICS:

• About five times tend to be more durable than brushed servos
• Double ball bearings and Samarium cobalt magnets
• Smoother procedure and greater opposition to jolts and vibration
• Exact same energy use as brushed electronic servos
• Aluminum center instance

INCLUDES:

Futaba BLS152 Servo with 0.83" (21mm) circular horn, 1.8" (45mm) circular horn, 1.5" (39mm) 4-point horn, 1.2" (32mm) 6-point horn, four artificial grommets, four steel eyelets and four 1.5 x 12mm mounting screws, instruction sheet

REQUIRES:

Starting in aircraft, connecting linkage and connecting to receiver

SPECS:

• Speed: 0.14 sec/60?X at 6V
• Torque: 430.6 oz-in (31.0kg-cm at 6V)
• Size: 1.59 x 0.83 x 1.51" (40.5 x 21 x 38.4mm)
• Body fat: 2.58oz (73g)
• Horn Set Screw Size: 3x8mm

REMARKS:

The BLS152 is made for high torque applications in major models. Quite high present drain is normal at startup. Always utilize a 5-cell NiCd battery power for a few efficiently helpful performance.

For complete performance of electronic servos utilize them simply with PCM and FASST systems. Counter electronic servos with AM systems.
