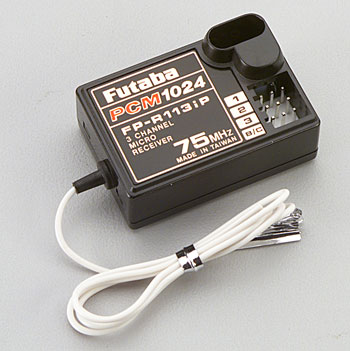

this really is a R113iP 3-Channel 27MHz/ 40MHz/ 75Mhz Micro PCM1024 Receiver "Without Crystal".
QUALITIES: Narrow-band spacing and superior indicator filtering combined to
provide extremely clear, interference-free reception and
amazingly smooth, accurate control.
Designed for modelers who would like to use one radio transmitter
to run different types.
INCLUDES: One R113IP 3-Channel 27MHz/ 40MHz/ 75Mhz Micro PCM1024 Receiver
REQUIRES: One FUTL64** Receiver Crystal Or a Futaba solitary modification crystal particularly FUTL52**
SPECS: Narrow Band: 20kHz
Intermediate regularity: 455kHz
Power demands: 4.8 to 6.0 volts (distributed to servos)
Current Drain: 18mA
Length: 1.69" (42.7mm)
Width: 1.13" (28.7mm)
Height: 0.63" (16.0mm)
fat: 0.74oz (21g)
OPINIONS: the transmitter/receiver crystal set,
Original Notice about Frequency Changes-
*72MHz- minimal musical company sites 11 to 35; high musical organization the web sites 36 to 60.
Receiver crystal channels (11-35 or 36-60) Within Each Band
Can stay Changed, nor need a retuning making use of this receiver.
*72MHz Regularity Band (low or high) the receiver cannot Be
Changed from low to high musical business, OR from high to low musical company without
sending it into Futaba Services for retuning.
*50MHz, 72MHz, 27MHz and 75MHz Frequency Bands cannot under any
circumstances be interchanged collectively. The receiver Must
be provided for retuning towards appropriate musical company.
*50MHz, 27MHz and 75MHz receiver crystals is changed anywhere
within this bands. You will discover not any high or low bands such
as the 72MHz musical company has.
*Transmitter Crystals can not be changed to another channel except
by a professional solution center. Its against FCC instructions, and
illegal the customer to enhance a frequency determining component
of a transmitter. If radio isn't retuned, possibly its a hazard
spectators, modelers or home, and void AMA security.
*Check utilising the neighborhood R/C club the frequencies within city.
