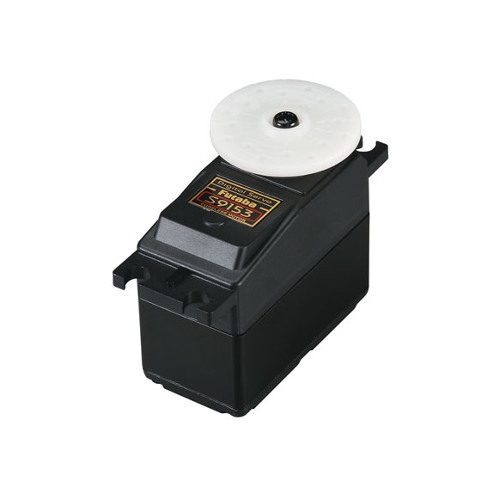

this is actually the Futaba S9153 Digital Aileron/Elevator Servo.
Comes with "J" Connector Pre-Installed.
FEATURES: quality wiring handles greater present loads
Metal center casing which allows you to dissipate temperature plus it's produced to
be water and dust proof
Coreless motor
High torque
One 12 months warranty
INCLUDES: One Futaba S9153 Digital Aileron/Elevator Servo
Two rectangular grommets
Four metal bushings
Four 3mm x 15mm self tapping phillips brain mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: 0.15 sec/60 quantities @ 6V
Torque: 208 oz/in @ 6V ( 15 kg/cm )
fat: 3 oz (85g)
Length: 1.91" (48.6mm) example just
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting area facilities same component: 0.55" (14mm)
Distance between mounting area facilities opposing component: 2.35" (59.6mm)
REVIEWS: S9153 Digital Servo Precautions,
-It is much better to prevent long leads and Y-harnesses particularly with
standard grade cables. If issues are skilled, think about using
heavy responsibility cable such as for example Futaba's durable Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9153 Servo is manufactured particularly for High-
Torque and High-Speed, because of this quite high present Drain Is
Normal At business. For Ultimate Efficiency Whenever Utilizing This Servo
Please Review These Points.
(1) Whenever utilizing Systems as a consequence of the Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting that may Cause Shorter
Operation Time.
(2) Whenever developing the Servo Please always check Pushrod Linkage To Make
Sure there is no Binding to avoid exorbitant Power
Consumption and reduce steadily living for the motor and Battery.
This electronic servo may possibly not be aided by the next * happen *
transmitters due to the fact servo fundamental indicator is: 1310us).
CONQUEST were, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), brand new Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they will work fine with present AM systems *****
COMMENTS: Servo Accessory Package (FUTM2042) includes the 2 big horns and
all mounting gear mentioned previously.
Gear Set could be had separately, FUTM3453.
Case Set is had independently, FUTM3071.
A note on coreless devices. The standard servo engine has a steel
core armature covered with with wire that spins in magnets.
In a coreless design, the armature makes use of a thin cable mesh that forms
a glass that spins through away from magnet eliminating the
heavy steel core. This design is particularly lighter causing smoother
operation and faster effect time.
