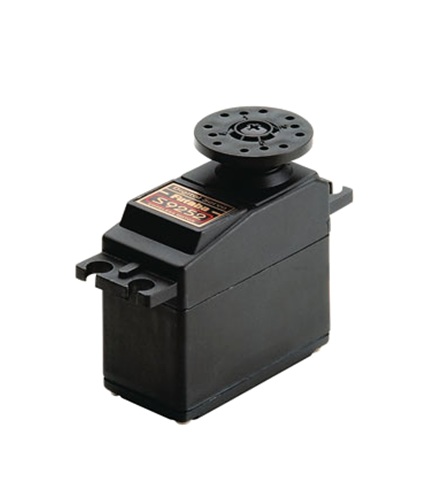

here is the Futaba S9252 Digital high Torque, All-Purpose F3C Servo
with High-Current Wire Lead and "J" Connector Pre-Installed.
This servo may cause high-current draw from your own batteries.
If using NiMH or Li-Po batteries, encourage them to capable
of delivering sufficient Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the reaction time
from transmitter input to servo reaction.
Coreless motor
Dual ball bearings in production shaft
Plastic/nylon gear train
Moderately high speed
High current, high capability cable lead with low resistance
Case is manufactured out of black colored colored plastic
Dust and water-resistant (perhaps not waterproof)
is effective alongside control areas on F3C helicopters or precision
fixed wing aircraft.
One year warranty
INCLUDES: One Digital All Purpose Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One Big Round Horn
One Six supply Horn
SPECS: Speed: .14 sec/60 quantities (considering 4.8V rating)
Torque: 92 oz/in (6.6 kg-cm) (considering 4.8V rating)
fat: 1.8 oz (50 g)
power: 4.8V (Futaba cannot suggest utilizing 6V)
Length: 1.6" (41mm)
Width: .8" (20mm)
_ Height: 1.5" (38mm)
COMMENTARY: S9252 Digital Servo Precautions,
-It is far more straightforward to quit long leads and Y-harnesses particularly with
standard grade cables. If problems are skilled, start considering using
heavy duty cable such as for instance Futaba's quality Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9252 Servo is established specifically for high-
torque and high-speed, because of this high current drain is
normal at startup. For ultimate performance whenever applying this servo,
please review these points.
(1) Always use a 4.8V NiCd battery. Dry cells are rated at 1.5V
each making your whole voltage 6.0V which may damage the gyro.
(2) Whenever utilizing systems along with the battery power fail safe function it has
a greater cut-off voltage environment that may cause shorter
operation time.
(3) Whenever developing the servo please always check pushrod linkage to make
sure there is no binding to avoid excessive power
consumption and minmise living of motor and battery power.
Whenever With GY501 Gyro:
Switch the GY501 servo framework expense function (Frm) from "NOR" to
"tall" showing the performance of gyro on fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key to produce "High".
This electronic servo cannot be coupled with after * have always been *
transmitters since the servo fundamental indicator is: 1310us).
CONQUEST were, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), amazing Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they are going to work fine with current AM systems *****
A summary of coreless services and products, the conventional servo motor has a
steel core armature covered with cable that spins inside the
magnets. In a coreless design, the armature employs a thin wire
mesh that kinds a cup that spins through the entire not in magnet
eliminating the hefty steel core. This design is lighter
resulting in smoother procedure and faster reaction time
