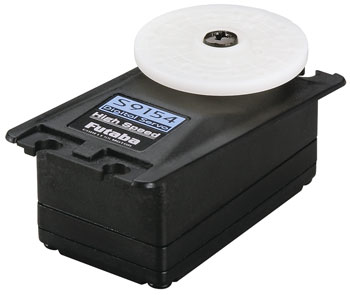

here is the Futaba S9154 Digital minimal Profile tall Speed Aileron Servo
with J Connector.
Designed for aileron applications on model aircraft.
This servo could make high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, encourage them to capable
of delivering enough Amps.
QUALITIES: Coreless motor
Digitally enhanced microprocessors cut in 2 the consequence time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Low profile aero design is especially suitable for wing installations
with slim airfoils
Black synthetic case
One 12 months warranty
INCLUDES: One S9154 Digital minimal Profile high rate Aileron Servo
One circular servo wheel, one 6 supply servo horn
four grommets, four mounting screws and two plastic mounts.
SPECS: Speed: 0.14 sec/60 deg @ 4.8V
Torque: 64 oz/in @ 4.8V (5.8 kg/cm @ 4.8V)
Length: 1.9" (48mm)
Width: 1.1" (28mm)
Height: 1.0" (25mm)
Weigth: 1.9 oz (53g)
power: 4.8V (Futaba will not suggest using 6V)
COMMENTS: S9154 Digital Servo Precautions,
-It is way more straightforward to avoid long leads and Y-harnesses specially with
standard grade cables. If dilemmas are skilled, consider using
heavy responsibility cable like Futaba's hefty fat Series or Hobbico's
Pro Series,minimizing lead lengths, and/or the removal of Y-harnesses.
-Current Drain: This electronic servo is very made for high-
torque or high-speed, consequently high present drain is normal
at startup. For ultimate performance when working with this servo please
review these points.
1. Broadcast systems utilising the Battery Fail secure function have actually actually actually a
higher cut-off voltage environment that may cause shorter
operation time.
2. When designing the servo, please check always pushrod linkage to
make yes there is absolutely no binding to enable you to avoid excessive
power use and reduce steadily residing from engine and
battery.
An e-mail on coreless engines. The conventional servo motor has a steel
core armature covered with cable that spins in magnets. In
a coreless design, the armature employs a thin cable mesh that kinds a
cup that spins across the far from magnet eliminating the
heavy metal core. This design causes smoother procedure and
faster effect time.
This electronic servo might not be with all the next * can be *
transmitters because of the fact servo fundamental sign is: 1310us.
CONQUEST have now been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Amazing Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
***** Otherwise they're going to work fine with current AM systems *****
No other hands works together this servo, due to the unique
spline size.
