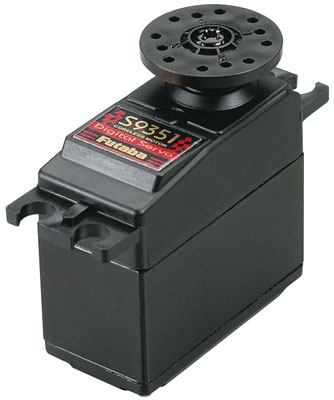

Futaba S9351 Digital High Torque Servo  [S9351]

QUALITIES:
Includes durable wiring that'll handle greater active lots
new steel casing which in fact really assists dissipate heat
Coreless Engine
Tall Torque
Metal gears
ideal for 1/8 vehicles or vessels where greater Torque and Speed are essential
12 months limited warranty

INCLUDES:
One Digital high Torque Servo w/Small Round Horn and 7.5" (190mm) cable lead
Two Rectangular Grommets
Four Chrome Bushings
One "T" Horn

SPECS:
price: 0.16 sec/60�X @ 4.8V
0.13 sec/60�X @ 6V
Torque:153 oz-in @ 4.8V
192 oz-in @ 6V
proportions: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)
weight: 2.2oz (61g)

COMMENTS:
If Gear Set is needed FUTM3460
If initial Gear simply is very important FUTM3500
For Grommets FUTM2346
For Eyelets FUTM2347
For Mounting Screws FUTM2250

S9351 Digital Servo Precautions,
-It is means more straightforward to stop long leads and Y-harnesses especially with standard grade cables. If dilemmas are skilled, consider utilizing durable cable such as for instance Futaba's durable Series or Hobbico's expert Series, minimizing lead lengths, and/or eliminating Y-harnesses.

-Current Drain: Futaba S9350 Servo is specifically designed for High-Torque and High-Speed, due to this Quite high Active Drain Is Normal At company. For Ultimate Effectiveness Whenever Applying This Servo Please Review Another Points.

(1) whenever utilizing Systems as a result of Battery Fail secure Function it really is an elevated Cut-Off Voltage Setting that may Cause paid down Procedure Time.

(2) whenever starting the Servo Please check always Pushrod Linkage to ensure there's no Binding to get rid of extortionate energy usage and minmise the life span from engine and Battery.

This electronic servo may not be in conjunction with following * were * transmitters even though the servo fundamental indication is: 1310us). CONQUEST will always be, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), brand new Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
