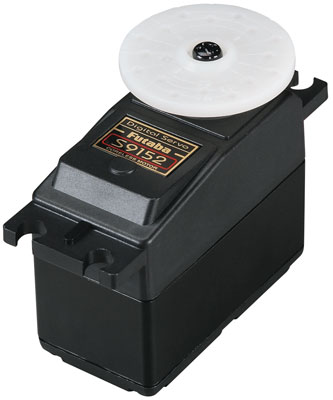

here is the Futaba S9152 Mega high Torque Digital Rudder Servo.
Comes with "J" Connector Pre-Installed.
QUALITIES: durable wiring handles greater current loads
New metal center casing assists dissipate temperature and it is built to be
water and dust proof
Coreless motor
High Torque
One 12 months guarantee
INCLUDES: One Futaba S9152 Digital Rudder Servo
Two rectangular grommets
Four metal bushings
Four 3mm x 15mm self tapping phillips brain mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: .19 sec/60 quantities @ 6V
Torque: 278 oz/in @ 6V ( 20.0 kg/cm )
fat: 3 oz (84g)
Length: 1.91" (48.6mm) situation just
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting starting facilities identical part: 0.55" (14mm)
Distance between mounting opening facilities opposing part: 2.35" (59.6mm)
COMMENTS: S9152 Digital Servo Precautions,
-It is way more straightforward to eradicate long leads and Y-harnesses specially with
standard grade cables. If dilemmas are skilled, begin considering using
heavy responsibility cable such as for instance Futaba's durable Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9152 Servo is specially created for High-
Torque and High-Speed, consequently quite high present Drain Is
Normal At business. For Ultimate Effectiveness When Working With This Servo
Please Review These Points.
(1) When working with Systems with all the Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting that could Cause Shorter
Operation Time.
(2) When setting up the Servo Please check Pushrod Linkage To Make
Sure there's absolutely no Binding to prevent excessive Power
Consumption and minmise living of engine and Battery.
This electronic servo may possibly not be along side after * can be *
transmitters after the servo basic indicator is: 1310us).
CONQUEST is, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), groundbreaking Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they are going to work fine with current AM systems *****
OPINIONS: Servo Accessory Package (FUTM2042) includes both big horns and
all mounting gear mentioned previously.
Replacement Case Set is FUTM3071.
Replacement Gear Set is FUTM3452.
A note on coreless devices. The conventional servo engine has a steel
core armature covered with with cable that spins within the magnets.
In a coreless design, the armature makes use of a thin cable mesh that forms
a cup that spins throughout the maybe not in magnet eliminating the
heavy metal core. This design is somewhat lighter causing smoother
operation and faster effect time.
