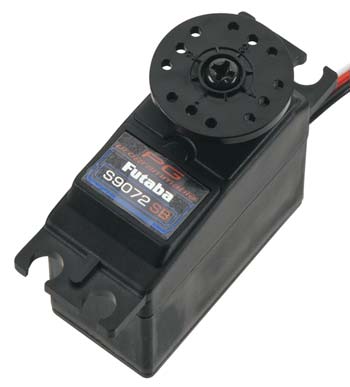

Futaba S9072SB - Digital S.Bus Programmable Servo  [S9072SB]

Befitting the Futaba S.Bus System
Servo might be simply programmed using the SBC-1 Channel Setting Tool,
S.Bus receiver or PCLink computer programs
designed with twin ball bearings
additionally well suited for Futaba receivers and transmitters manufactured after 1982

INCLUDES: Futaba S9072SB Serial Bus Digital Servo, 0.83" (21mm) circular servo
horn, 1.7" (44mm) long 3-point horn, two synthetic grommets, four
metal eyelets and instruction sheet

NEEDS: development, beginning in model and linking linkage

Specs and Features

• Measurements: 1-9/16 x 13/16 x 1-7/16" (40 x 20 x 37mm)
• Torque: 4.8V 97 oz-in (7 kg-cm), 6.0V 121 oz-in (9 kg-cm)
• Speed: 4.8V 0.12 sec/60 Degree ,6.0V 0.10 sec/60 Degree
• Weight: 2oz (57g)
