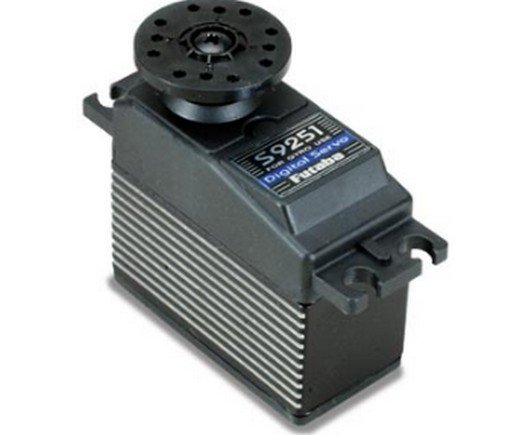

Futaba S9251 - Digital Servo (57g/0.07sec/3.7kg)  [S9251]

TRAITS:

• This servo had been made especially for the GY601 along with the GY611 gyros; it wont use other application.
• Producer claims your S9251 is the only servo used due to the GY601 gyro because no other servo has a satisfactory framework refresh cost.
• The GY601 can only just be utilized at 4.8 volts; greater voltages may damage the gyro.
• Maker Warning: "whenever mounting this servo inside fuselage, make sure your servo example whilst the steel regions of the helicopter framework cannot touch, to avoid radio noise."
• Maker Warning: "Immediately after journey, never ever touch the S9251 instance. Heat sink part concerning the situation can be hugely hot, that could cause burns."

SPECS:

• Modulation: Digital
• Torque: 4.8V: 51.0 oz-in (3.67 kg-cm)
• Speed: 4.8V: 0.07 sec/60°
• fat: 2.01 oz (57.0 g)
• proportions: Length:1.57 in (39.9 mm)
• Width:0.79 in (20.1 mm)
• Height:1.46 in (37.1 mm)
• motor kind: Coreless
• Gear Type: Metal
• Rotation/Support: Dual Bearings
