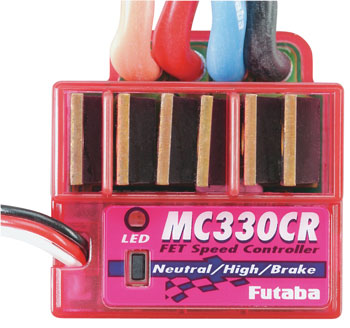

Futaba MC330CR ESC w/Reverse 13+T  [MC330CR]

This is often a MC330CR Electronic Speed Control w/ Reverse for 13+ Turn Motors.

TRAITS:

• Functions products which may effectively be 13 arises to 27 turns
• All connectors are pre-installed
• Reverse Disable helps it be right for rushing

INCLUDES:

One MC330CR Electronic Speed Control w/ Reverse and Brake/ Futaba J receiver connector, Standard battery power connector, ON/OFF modification. One Vinyl Adjustment Screwdriver

NEEDS:

• Futaba J appropriate receiver
• Feminine bullet engine connectors for motor, usage TRIC5500.

SPECS:

• Ability: 6 to 7 mobile batteries
• Engine limitation: 13+ turns
• Current- ahead: 200A Reverse: 100A
• On-resistance: .010 Ohms
• Tall Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for battery pack, Bullet engine (all pre-installed)
• Bullet engine Wire: 14 gauge
• BEC: Yes
• Length: 1.07"
• Width: .50"
• Height: 1.31"
• Weight: 1.59oz

REMARKS:

Most of the time, high-torque and brushless servos for steering control may be employed with this particular ESC offered the constant current draw concerning the servo wont rise above 1A constantly. Steer clear of the Futaba S9157 high-torque servo with this ESC as this servo appeals to over 3A."
