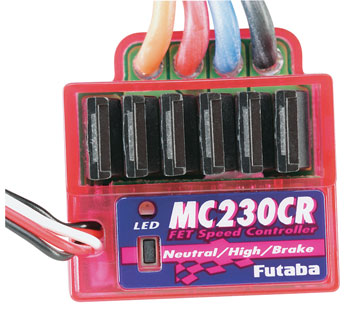

Futaba MC230CR ESC w/Reverse 20+T  [MC230CR]

This is actually a MC230CR Electronic Speed Control w/ Reverse for 20+ Turn Motors.

CHARACTERISTICS:

• Functions products which can be 20 arises to 27 turns (Stock Motors)
• All connectors are pre-installed
• One-touch set-up with set-up Light-emitting Diode.
• Completely proportional ahead and reverse
• Includes Reverse Disable hence befitting ROAR rushing
• Heat/overload/short circuit protection
• Low-battery function straight away cuts engine energy whenever power become too low.
• Receiver reminder switch beeps to remind that you switch off the receiver plus the vehicle will pulse (maybe not run) ahead as an extra reminder.
• Brake

INCLUDES:

• One MC230CR Electronic Speed Control w/ Reverse, Futaba J receiver connector, bullet connectors, standard sort battery pack connector and ON/OFF switch.
• One Set-Up Screwdriver (FUTM5685)
• One Instruction Sheet

NEEDS:

• Futaba J plug appropriate receiver
• Feminine bullet engine connectors for engine, usage TRIC5500.

SPECS:

• Capability: 6 to 7 mobile batteries
• Motor Limit: 20+ turns
• Current- ahead: 90A Reverse: 45A
• On opposition: .0035 Ohms
• High Frequency: Yes, 1,500Hz
• Connectors: Futaba J, Standard for Battery, Bullet motor (all pre-installed)
• Bullet motor Wire: 16 measure
• BEC: Yes (6V) (1 amp)
• Length: 1.07" (27.1mm)
• Width: .50" (12.7mm)
• Height: 1.31" (33.3mm)
• fat: 1.55oz (44g)

REMARKS:

Often, high-torque and brushless servos for steering control works completely using this ESC provided that the constant present draw the servo cannot surpass 1A constantly. Steer clear of the Futaba S9157 high-torque servo with this ESC as this servo appeals to over 3A."
