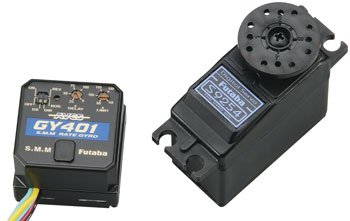

Futaba GY401_S9254 - GY401 Gyro w/SMM Technology + S9254 Digital Coreless High Torque  [GY401_S9254]

TRAITS:

• AVCS System: mainly because the rudder trim improvements (considering wind and other meteorological changes) leading, straight back, alongside heli attitudes modification and tend to be additionally automatically terminated; end (rudder) procedure is straightforward, making it ideal for 3D trip. (also called going hold gyro)
• SMM Gyro Sensor: usage of this newly developed technology virtually eliminates rudder trim changes during journey (see REACTIONS).
• Digital Servo Compatible (DS Mode): DS mode helps it's befitting Futaba Digital Servos. This maximizes the high-speed impact performance with regards to the Digital Servo.
• Included high-speed S9254 Digital Servo boasts 47 oz-in torque and a speed of .06 sec/60?X
• Remote Gain Function and Mode Switching Function Remote: Gain function permits sensitiveness switching through transmitter and mode switching function enables AVCS/normal gyro mode switching.
• Incorporated, compact and lightweight design authorized by high thickness mounting technology.
• Conductive Resin instance: this example improves EMC (Electrostatic and electromagnetic interruption) opposition.

INCLUDES:

• One GY401 gyro
• One S9254 Digital servo, available individually FUTM0224
• One .81" (20.5mm) circular servo horn, one 1.8" (45mm) round servo horn
• One 1.25" (32mm) 6 point servo horn, one 1.5" (39mm) 4 point horn, mounting equipment
• One mini synthetic modification screwdriver
• Three mounting pads
• One instruction sheet

SPECS:

• GY401 Gyro- S9254 Digital Servo
• Length: 1.1" (27mm) 1.6" (40mm)
• Width: 1.1" (27mm) .79" (20mm)
• Height: .79" (20mm) 1.4" (36.2mm) excluding horn
• Weight: .95oz (27g) 1.8oz (50g)
• Torque: 47 oz-in
• Speed: .06 sec/60?X
