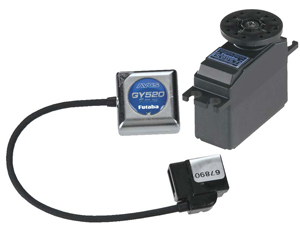

Futaba GY520 Heading Hold Gyro + S9257 High Speed Digital Servo for Helicopter Gyro Operation.Futaba GY520 Heading Hold Gyro
QUALITIES:
Ultra small and lightweight gyro within one unit-no split sensor and control product
utilizes a high cost advanced PID (Proportional-Integral-Derivative) control algorithm present MEMS (Micro-Electro-Mechanical methods) allows complete control system utilizing one chip
Delivers superior performance with analog servos and excels with electronic servos
F3C and 3D mode selectable, six programmable parameters
Functions at quite higher rate; 280Hz in to the 1520uS mode and 506Hz in 760uS mode
Programmable through solitary switch and multi-color Light-emitting Diode or through a pc utilizing Futaba
CIU-2 USB adapter
Registered AVCS (Angular Velocity Control System) architecture achieves unmatched end keeping capability
yearly limited warranty
CONTAINS: Futaba GY520 Heading Hold Gyro, guide, one each 13" (330mm) lead with red connectors and lead with black colored colored connectors
two chapters of sensor tape, mini screwdriver and guidelines
NEEDS: Digital or analog servos
SPECS: Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
Voltage number: 3.8 - 6.0V DC
Control System: Advanced PID control
Present Draw: 40mA (without servo)
Sensor: MEMS vibrating framework gyro
running Temperature: 14�XF - 113�XF (-10�XC - +45�XC)
Sensor expense volume: +/- 800�X sec
Angular Velocity number: +- 800 deg/sec
here is the Futaba S9257 high Speed Digital Servo for Helicopter Gyro procedure.
FEATURES:
Become used using the Futaba GY401 (FUTM0807, FUTM0808) this means GY502 gyros
created using two ball bearings
12 months limited guarantee
CONTAINS:
Futaba S9257 Tall Speed Digital Servo with .83" (21mm) diameter circular horn, 1.5" (39mm) diameter four-point horn, 1.2" (32mm)
diameter six-point horn, mounting gear, electronic servo
precaution sheet and guarantee card
REQUIRES:
linking to gyro
SPECS: measurements: 1.4 x 0.6 x 1.1" (36 x 15 x 29mm)
bodyweight: .92oz (26g)
Torque: 28 oz-in (2.0 kg-cm) at 4.8V
working Speed: 0.08 sec/60�X at 4.8V
Lead Length: 7.9" (200mm)
