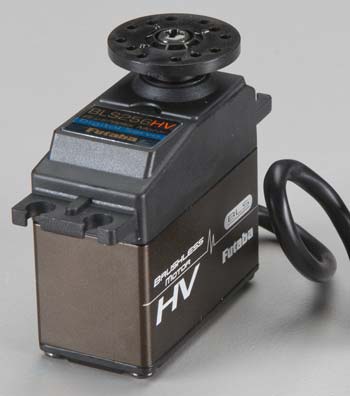

Futaba BLS256HV - High Voltage High Speed Servo  [BLS256HV]

• Designed for rudder control in Futaba upper end gyros
• Brushless engine
• Handles around 2S LiPo battery power

INCLUDES:

• Futaba BLS256HV Servo
• 0.83" (21mm) Diameter Round Horn
• 1.8" (45mm) Diameter Round Horn
• 1.6" (38.5mm) Diameter 4-Point Horn
• 1.2" (32mm) Diameter 6-Point horn
• Mounting Hardware

NEEDS: Installing in heli, connecting linkage and connecting to gyro

Specs and Features

• Speed: 0.055 sec/60 level at 6.6V, 0.050 sec/60 level at 7.4V
• Torque: 61.1 oz/in (4.4 kg/cm) at 6.6V, 69.5 oz/in (5.0 kg/cm) at 7.4V
• Size: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
• Body fat:2.15oz (61g)
• power: 6.0 - 7.4V DC

REMARKS

The BLS256HV is manufactured linked with gyro rudder control. Dead musical business is prepared since narrowly that one may. The moment the fuselage is fixed, the servo may jitter. This matter is normal.
High current drain is normal at startup. Always utilize a 6V - 7.4V power packs.
