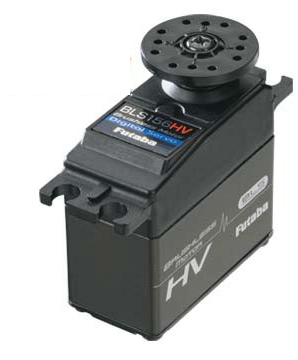

Futaba BLS156HV - High Voltage High Torque Servo  [BLS156HV]

Laden up with a brushless motor that persists considerably longer and operates smoother and faster than brushed services and products with an improved opposition to jolts and vibration same power usage as brushed electronic servos double ball bearings.

INCLUDES: BLS156HV Servo with 0.83" (21mm) diameter circular horn, 1.8" (45mm) diameter circular horn, 1.5" (39mm) diameter four-point horn, 1.2" (32mm) diameter six-point horn, recommendations and mounting gear

NEEDS: Installing in model and connecting linkage.

Specs and Features

• Speed: 0.15 sec/60 degree at 6.0V ,0.12 sec/60 level at 7.4V
• Torque: 250oz/in (18.0kg/cm) at 6.0V ,291.7oz/in (21.0kg/cm) at 7.4V
• Size: 1.57 x 0.79 x 1.45" (40 x 20 x 36.8mm)
• body fat: 2.33oz (66g)
• power: DC 6.0 - 7.4V
• Horn Screw Size: 3x8mm
