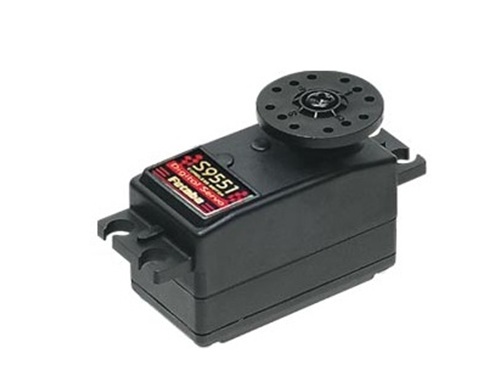

Here is the S9551 high Torque minimal Profile Digital Servo w/Coreless engine for Aircraft and vehicle use. QUALITIES:
- Digitally enhanced microprocessor cuts about half the response time from transmitter input to servo response
- Low profile allows the servo to allow for into wings and build in vehicle framework at a lesser price obstruction
- Coreless engine
- Metal gears
- Twin ball-bearings
- Black synthetic situation
- Dust and waterproof (not waterproof)
- Ideal for F3A aileron application and 1/10 scale electric touring car
CONTAINS:
One S9551 Digital minimal Profile Servo with 0.83" (21mm) diameter circular horn, 1.7" (44mm) long T-shaped horn, four eylets, two synthetic gromments (order FUTM2250 if mounting screws are anticipated)
SPECS:
- Speed: 0.14 sec/60?X @ 4.8V 0.11 sec/60?X @ 6.0V
- Torque: 98 oz-in (7.0kg/cm) @ 4.8V 122 oz-in (8.8 kg-cm) @ 6.0V
- Weight: 1.6oz (45g)
- Measurements: 1.6 x 0.8 x 1.0" (41 x 20 x 25mm)
- Distance Between Mounting Hole Centers: 0.39" (10mm)
- Horn Screw Size: 3x8mm
RESPONSES:
S9551 Digital Servo Precautions, you will need to avoid long leads and Y-harnesses especially with standard grade cables. If dilemmas are skilled, consider using hefty fat cable particularly Futaba's durable Series or Hobbico's specialist Series, minimizing lead lengths, and/or getting rid of Y-harnesses. Present Drain: Futaba S9551 Servo is particularly designed for high- Torque and High-Speed, consequently quite high Active Drain Is Normal At business. For Ultimate Effectiveness Whenever Making Use Of This Servo, Please Review Another Points. (1) whenever using methods with the Battery Fail secure Function it is a heightened Cut-Off Voltage establishing which will Cause paid off Procedure Time. (2) whenever creating the Servo Please check Pushrod Linkage to make sure there's absolutely no Binding to prevent extortionate power Consumption and minimize steadily lifespan attached to engine and Battery.
This digital servo can not be present combination basic * can be * transmitters whilst the servo fundamental indicator is: 1310us). CONQUEST happen, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Groundbreaking Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show. For complete performance use with FM, PCM and HR systems.
A message on Coreless machines. A day to day servo engine has a metal core armature covered with with cable that spins in magnets. In a Coreless design, the armature employs a slim cable mesh that sorts a glass that spins through the whole outside towards magnet eliminating the rock core. This design is lighter finally causing smoother procedure and faster effect time.
