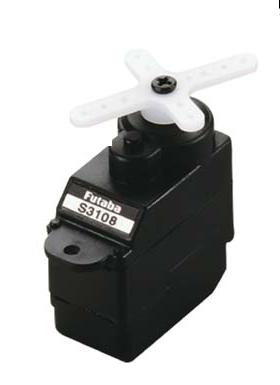

Futaba S3108 Micro Servo  [S3108]

here is the S3108 Micro Servo from Futaba servo, that's perfect for R/C park flyer airplanes.

This servo may cause high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, lead them to capable of delivering sufficient Amps.

FEATURES:
Delivers exceptional torque and cost because of its tiny size and lightweight
Unique four point micro servo horn
exceedingly lightweight, perfect for small planes and park leaflets
can be used for elevators, ailerons and rudders
year restricted warranty

INCLUDES:
One S3108 Micro Servo with Futaba J male connector, servo horn, and guarantee sheet

REQUIRES: Servo mounting screws (FUTM2350), developing in model

SPECS:
Speed: 0.12 sec/60 deg @ 4.8V
Torque: 17 oz/in @ 4.8V
Measurements: Length: .9" (21.8mm)
Height: 0.8" (19.8mm)
Weight: 0.27 ounce (7.6 grms)
Servo horn size at longest point: 0.90" (23mm)
Servo horn size at fastest point: 0.62" (16mm)
Connector: Male "J" type with approx. 5" (126mm) cable

OPINIONS:
This servo may possibly not be in conjunction with gas products or large/middle scale gliders or other models looking for torque. Utilization of 6.0V perhaps not recommended as this might reduce servo life.

This servo gets the standard Futaba J connector.If needing the micro connector and person would buy FUTM0700.
Micro Extension is FUTM4508.
For replacement horn set utilize component # HRCM5708 (per jpg)
No gear set available, per FUTABA.
