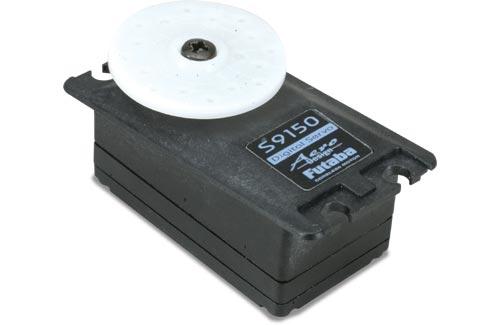

This is actually the Futaba S9150 Digital Aileron Servo with J Connector.
Designed for aileron applications on model aircraft.
This servo may cause high-current draw from your own batteries.
If using NiMH or Li-Po batteries, get them to capable
of delivering adequate Amps.
FEATURES: Coreless motor
2 ball bearings
Digitally enhanced microprocessors cut by 50 per cent the response time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Low profile aero design is quite suited to wing installations
Black synthetic case
One 12 months guarantee
INCLUDES: One S9150 Digital aileron servo 1-3/4" (44mm) diameter servo wheel,
1-1/4" (32mm) diameter servo wheel, one six point servo wheel,
four steel grommets, four mounting screws and two synthetic mounts.
SPECS: Speed: 0.18 sec/60 deg @ 4.8V
Torque: 81 oz/in @ 4.8V (5.8 kg/cm @ 4.8V)
Length: 1.9" (48mm)
Width: 1.1" (28mm)
Height: 1.0" (25)
Weigth: 1.9 oz (53g)
power: 4.8V (Futaba doesn't suggest using 6V)
REVIEWS: S9150 Digital Servo Precautions,
-It is better to avoid long leads and Y-harnesses specifically with
standard grade cables. If dilemmas are skilled, start considering using
heavy responsibility cable including Futaba's durable Series or Hobbico's
Pro Series,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: This electronic servo is fairly created for high-
torque or high-speed, consequently quite high present drain is normal
at startup. For ultimate performance whenever applying this servo please
review these points.
1. Broadcast systems with the Battery Fail secure function have actually really in fact really a
higher cut-off voltage environment which will cause shorter
operation time.
2. Whenever developing the servo, please always check pushrod linkage to
make yes there is absolutely no binding to prevent excessive
power use and reduce living of motor and
battery.
This electronic servo may possibly not be utilized in combination utilising the next * have already been *
transmitters because servo fundamental indication is: 1310us).
CONQUEST will always be, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they will work fine with current AM systems *****
** no other fingers works making use of this, has an extraordinary spline size.
