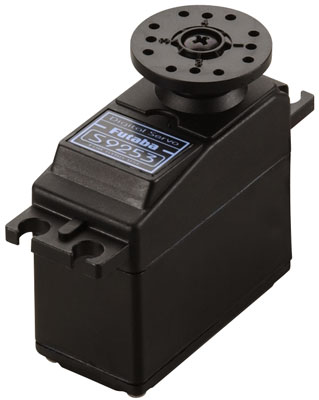

This is the Futaba S9253 Digital high rate Rudder F3C Servo for Gyro
with High-Current Wire Lead and "J" Connector Pre-Installed.
This servo can make high-current draw from your own batteries.
If making use of NiMH or Li-Po batteries, cause them to become capable
of delivering enough Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the reaction time
from transmitter input to servo response.
Dual ball bearings inside manufacturing shaft
Coreless motor with Plastic/nylon gear train
High speed
High present, high capability cable lead with low resistance
Gold plated connectors
Case includes black colored colored colored plastic
Dust and waterproof (maybe not waterproof)
Designed completely as a tail rotor servo for F3C, 30, 46 and 60
sized helicopters, particularly with SMM gyros including GY401,
GY502. (wont use GY601 gyro.)
One year guarantee
INCLUDES: One Digital All Purpose Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One big Round Horn
One Six Supply Horn
SPECS: Speed: .08 sec/60 amounts (centered on 4.8V gyro rating)
Torque: 28 oz/in (2.0 kg-cm) (prior to 4.8V gyro score)
fat: 1.7 oz (49 g)
power: 4.8V (Futaba cannot suggest utilizing 6V)
Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.5" (38mm)
COMMENTARY: S9253 Digital Servo Precautions,
-It is much better to prevent long leads and Y-harnesses specially with
standard grade cables. If dilemmas are skilled, begin considering using
heavy responsibility wire like Futaba's hefty fat show or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9253 Servo is extremely designed for high-
torque and high-speed, consequently quite high current drain is
normal at startup. For ultimate performance whenever using this servo,
please review another points.
(1) Always use a 4.8V NiCd w/gyro. Dry cells are ranked at 1.5V
each making the entire voltage 6.0V that'll damage the gyro.
(2) Whenever making use of systems along with the battery fail safe function it has
a higher cut-off voltage environment that'll cause shorter
operation time.
(3) Whenever setting up the servo please check pushrod linkage to make
sure there is no binding to avoid exorbitant power
consumption and minmise residing concerning the motor and battery pack.
Whenever And GY501 Gyro:
Switch the GY501 servo framework price function (Frm) from "NOR" to
"tall" showing the performance associated with gyro on fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key to create "High".
This electronic servo may not be together with these * is always *
transmitters because the servo fundamental sign is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they will work fine with present AM systems *****
