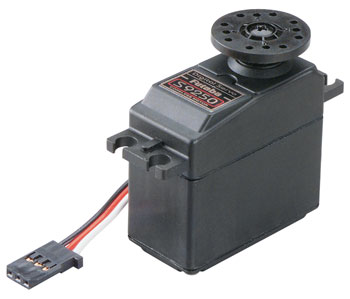

here is the S9250 Digital Servo w/Two Ball Bearings for
Helicopter and Aircraft use which is provided with "J" Connector Pre-Installed.
This servo can cause high-current draw from your batteries.
If making use of NiMH or Li-Po batteries, get them to capable
of delivering enough Amps.
QUALITIES: Digitally Improved Microprocessors Cut About 1/2 the end result Time
From Transmitter Input To Servo Reaction.
Coreless Motor
Dual Ball Bearing manufacturing Shaft
Metal Gears
High Speed
Case includes Ebony Plastic
Dust and waterproof (maybe not Waterproof)
Great for Helicopters or Airplanes where greater Torque and Speed are
required.
One year guarantee.
INCLUDES: One Digital Helicopter/Aircraft Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One Big Round Horn
One Six Supply Horn
SPECS: Speed: .11 Sec/60 amounts (considering 4.8V)
Torque: 76 oz/in (5.5 kg-cm) (centered on 4.8V)
fat: 1.9 oz (54 g)
power: 4.8 Volts (Futaba wont suggest using 6V)
Length: 1.6" (41mm)
Width: 0.8" (20mm)
Height: 1.5" (38mm)
REVIEWS: S9250 Digital Servo Precautions,
-It is much better to stop long leads and Y-harnesses specifically with
standard grade cables. If issues are skilled, consider using
heavy obligation cable such as for example Futaba's quality show or Hobbico's
Pro Series ,minimizing lead lengths, and/or the removal of Y-harnesses.
-Current Drain: Futaba S9250 Servo is very designed for High-
Torque and High-Speed, consequently high current Drain Is
Normal At business. For Ultimate Effectiveness Whenever Making Use Of This Servo
Please Review These Points.
(1) Always use a 4.8V NiCd w/gyro. Dry cells are ranked at 1.5V each
making the conventional voltage 6.0V that might damage the gyro.
__---------------------------------------------------------------------------
The reasoned explanations why this servo is preferred for 4.8V batteries, often batteries
will price above their stated votlage level. A 6V 5-cell battery pack will
charge inside the 6 Volt degree. A voltage volume of over 6 Volts may
damage inside circuitry. Consequently we can not suggest 5-cell battery
packs.If you utilize a 6 volt regulator to energy this servo, the servo will
operate typically without circuit damage.
---------------------------------------------------------------------------
(2) whenever utilizing strategies using the Battery Fail secure Function it Has
a Higher Cut-Off Voltage Setting that may Cause Shorter
Operation Time.
(3) Whenever installing the Servo Please always check Pushrod Linkage To Make
Sure there isn't any Binding to prevent exorbitant Power
Consumption and minimize living associated with the motor and Battery.
Whenever Used in combination with GY501 Gyro:
Switch the GY501 Servo Frame rate Function (Frm) from "NOR" to
"tall" to help make the effectiveness of Gyro towards Fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key showing "High".
This electronic servo may possibly not be utilized in combination using the after * are *
transmitters given that the servo fundamental indicator is: 1310us).
CONQUEST is, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), fresh Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they're going to work fine with current AM systems *****
