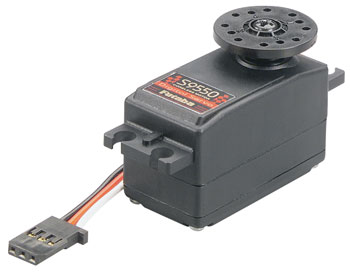

this is actually the S9550 minimal Profile Digital Servo w/Two Ball Bearings for
Airplane and automobile use that's provided with "J" Connector Pre-Installed.
This servo works fine with either 4.8V or 6V receiver packages.
FEATURES: Digitally enhanced Microprocessor Cut About 1/2 of Response
Time From Transmitter Input To Servo Reaction.
Low Profile allows the servo to match into wings and lay down
down in vehicle framework regarding cheap obstruction.
Coreless Motor
Metal Gears
Dual Ball-Bearings
tall Torque
Case is made of Ebony Plastic
Dust and waterproof (perhaps not Waterproof)
High current/Low opposition servo leads.
Ideal for F3A aileron application and 1/10 scale electric touring car
INCLUDES: One S9550 Digital minimal Profile Servo w/small Round Horn
Four Rectangular Grommets
One Three supply Horn
One Wheel Horn
SPECS: Speed: .14 Sec/60 Deg @ 4.8V or .11 sec/60 deg @ 6V
Torque: 67 oz/in @ 4.8V - 83 oz/in @ 6V
(4.8 kg/cm @ 4.8V - 6.0 kg/cm @ 6V)
body fat: 1.6 oz (45g)
Length: 1.6" (41mm)
Width: 0.8" (20mm)
Height: 1.0" (25mm)
REMARKS: S9550 Digital Servo Precautions,
-It is means simpler to avoid long leads and Y-harnesses specifically with
standard grade cables. If problems are skilled, start considering using
heavy responsibility cable including Futaba's hefty fat Series or Hobbico's
Pro Series, minimizing lead lengths, and/or eliminating Y-harnesses.
Current Drain: Futaba S9550 Servo is very created for High-
Torque and High-Speed, consequently high present Drain Is
Normal At company. For Ultimate Effectiveness When Working With This Servo
Please Review The Following Points.
(1) Whenever using Systems utilising the Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting that will Cause Shorter
Operation Time.
(2) Whenever starting the Servo Please check Pushrod Linkage To Make
Sure there's no Binding to avoid exorbitant Power
Consumption and minmise steadily lifespan connected with motor and Battery.
This digital servo can't be current combination along with your * is always *
transmitters since the servo fundamental indicator is: 1310us).
CONQUEST take place, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), fresh Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they are going to work fine with present AM systems *****
