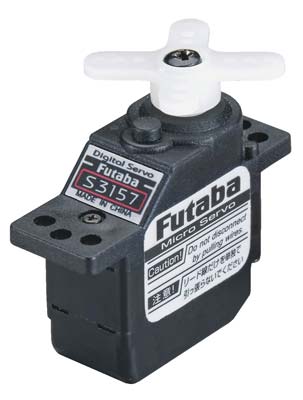

Futaba S3157 Servo Digital Micro High-Speed/Torque  [S3157]

FACULTIES: appropriate little electric planes and helicopters

INCLUDES:

• Futaba S3157 Digital high Speed/High Torque Micro Servo with universal connector
• .71" x .79" (18mm x 20mm) 4 supply servo horn (pre-installed)
• 0.79" x 1.6" (20mm x 40mm) 4 supply servo horn
• 0.79" (20mm) diameter circular horn

NEEDS:

• Establishing in aircraft, linking linkage and connecting to receiver
• Purchase DUBM6924 if mounting gear are necessary

SPECS:

• Torque: 21 oz-in (1.5 kg-cm) @ 4.8V
• 24 oz-in (1.7 kg-cm) @ 6.0V
• Speed: .10 sec/60? @ 4.8V
• 0.09 sec/60? @ 6.0V
• Size: 0.9 x 0.4 x 0.9" (22 x 11 x 23mm)
• body fat: .29 oz (8.3g)

OPINIONS:

• Additionally available with micro plug, FUTM0705.
• Not to be used with gasoline driven models, big models or other models that want high torque.
• Using voltage a lot more than 6.0V or utilizing high load toward servo will certainly reduce its life.
• Always utilize servo horn especially designed for this servo. Don't use main-stream servo horns.
• Excessive force or surprise towards servo horn may damage the ultra mini precision gears in the servo.
