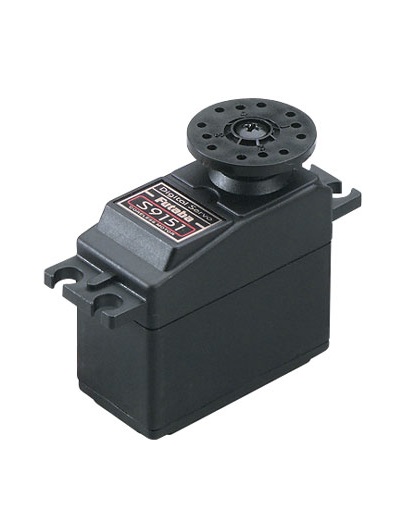

this is actually the S9151 Digital tall Torque Rudder F3A Servo.
This might just be utilized as well as 4.8V batteries.
This servo may cause high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, cause them to become capable
of delivering enough Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the response
time from transmitter input to servo reaction.
Digital procedure allows this servo to obtain complete energy immediately
and protect torque longer.
High-capacity, high-current cable with low opposition.
Coreless motor (a wire cage rotates throughout the magnet).
High cost method of instant effect.
Dual ball bearings on manufacturing shaft.
Delivers high torque rudder operation for precision fixed-wing F3A
pattern aircraft.
Dust and waterproof (perhaps not Waterproof)
Black synthetic situation.
One year guarantee.
INCLUDES: One S9151 Digital tall Torque Rudder F3A Servo w/Futaba J Connector
a small circular servo horn
Four Rectangular Grommets
Four Brass Bushings
Four 2 x 11mm Mounting Screws
One big Round Horn
One Six supply Horn
One Four supply Horn
SPECS: Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.5" (38mm)
fat: 1.8 oz (50g)
Speed: 0.19 sec/60?@ 4.8V
Torque: 132 oz/in (9.5 kg/cm) @ 4.8V
Power Supply: 4.8 (Futaba will not recommend making use of 6V)
FEATURES: S9151 Digital Servo Precautions,
-It is best to prevent long leads and Y-harnesses specially with
standard grade cables. If problems are skilled, consider using
heavy responsibility cable specially Futaba's durable Series or Hobbico's
Pro Series, minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9151 Servo is incredibly created for high-
torque and high-speed, due to this high current drain is
normal at startup. For ultimate performance whenever utilizing this servo,
please review these points.
(1) Whenever utilizing systems utilising the power packs fail safe function it has
a greater cut-off voltage environment that'll cause shorter
operation time.
(2) Whenever developing the servo please always check pushrod linkage to make
sure there isn't any binding to avoid excessive power
consumption and minimize living for this engine and battery pack.
This electronic servo may not be utilizing the after * have been *
transmitters once the servo fundamental indicator is: 1310us).
CONQUEST is always, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), amazing Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they will work fine with present AM systems *****
