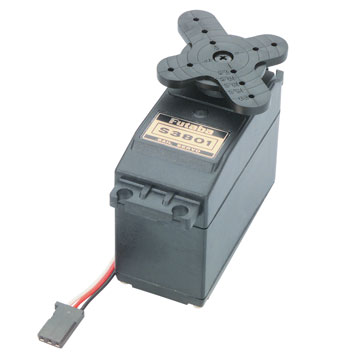

Futaba S3801 Servo Heavy Duty Arm Type Sail Control [S3801]

Price:

CAD$80.61

Brand:

Futaba

Model:

S3801

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - System - Servo - Standard Servos category

Write a review

Description

That is a heightened Torque, Arm-Type Sail Servo with a steel production Gear for ship applications requiring around 200 oz-in torque.
Futaba products have actually actually in fact One-Year Warranty.

This servo trigger high-current draw from your batteries if utilizing NiMH or LiPo batteries, get them to capable of delivering adequate amps.

QUALITIES:
Metal production gear combined with the other gears are nylon
Two Ball Bearings
3-pole engine
Sail supply included (FSH38)-(FUTM2258) plus standard 4-point supply
identical example as S134 servo
fluid and Dust resistant

INCLUDES:
One S3801 Tall Torque Sail Servo w/ J Connector

SPECS:
Torque: 156 oz-in @ 4.8V - 194 oz-in. @ 6V
11.2 kg-cm @ 4.8V - 14.0 kg-cm @ 6V
Transit Time: 0.30 sec/60�X @ 4.8V - 0.26 sec/60�X @ 6V
offer Travel: 125�X (under maximum conditions)
Length: 2.3" (59mm)
Width: 1.1" (29mm)
Height: 2.0" (50mm)
weight: 3.8oz (107g)
