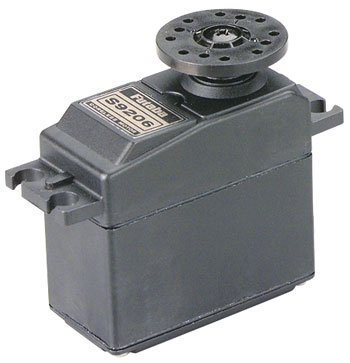

Futaba S9206 Servo Heli/Air High-Torque BB  [S9206]

here is the S9206 High-Torque Helicopter and Airplane Servo from Futaba.
This servo may be used for R/C airplanes and helicopters. (4.8V SOLITARY)

This servo can make high-current draw from your own batteries.
If utilizing NiMH or Li-Po batteries, cause them to with the capacity of delivering sufficient Amps.

QUALITIES:
2 ball bearings
Coreless engine
metal gear
High-torque
Dust and waterproof
year guarantee

INCLUDES:
One S9206 High-Torque Helicopter and Airplane Servo with a
Futaba J male connector
Four steel eyelets
Four black colored colored colored colored one-piece rectangular synthetic grommets
Four 2 x 11mm servo mounting screws
One little X-shaped servo horn
One big circular servo horn
One 6-arm servo horn

SPECS:
Speed: 0.19 sec/60 deg @ 4.8V
Torque: 132 oz/in @ 4.8V (9.5 kg/cm @ 4.8V)
Length: 1.6" (41mm)
Width: 0.8" (20mm)
Height: 1.5" (38mm)(with no servo horn)
Fat: 1.9 ounce (53 grms)
Connector: Male "J" kind with approx. 5" wire

COMMENTS:
For replacement metal gears set use FUTM3447 (2 are metal & 2 are nylon)
for several nylon gears customer can use FUTM3340
