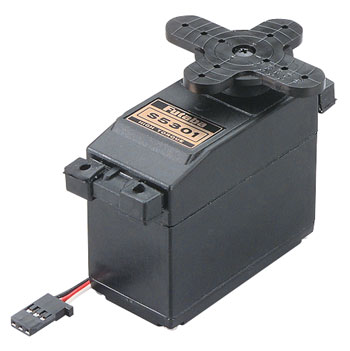

Futaba S5301 Servo High-Torque 1/4 Scale  [S5301]

here is the S5301 high Torque 1/4 Scale Servo from Futaba. Its ideal for R/C airplanes, sailplanes, gasoline vehicles and energy vessels.

This servo can create high-current draw from your own batteries if using NiMH or LiPo batteries, get them to with the capacity of delivering sufficient amps.

FEATURES:
Exceptional energy for operating big rudders effectively, and also will be regularly modification dual servo applications on elevators and ailerons.
5-pole engine
Tall torque
metal gear
two times ball bearing
Dust and waterproof
year guarantee.

INCLUDES:
One S5301 high Torque 1/4 Scale Servo with Futaba J male connector and big pre-installed cross-shaped servo horn
Four steel eyelets
Four big black colored colored rectangular synthetic grommets
Four 2 x 11mm servo mounting screws
Three servo horns (1 lg. round, 1 lg."X", 1 sm. 6-arm)

SPECS:
Speed: 0.29 sec/60�X @ 4.8V - 0.23 sec/60�X @ 6V
Torque: 233 oz-in @ 4.8V - 292 oz-in @ 6V (16.8 kg-cm @ 4.8V - 21.0 kg-cm @ 6V)
Length: 2.3" (59mm)
Width: 1.1" (29mm)
