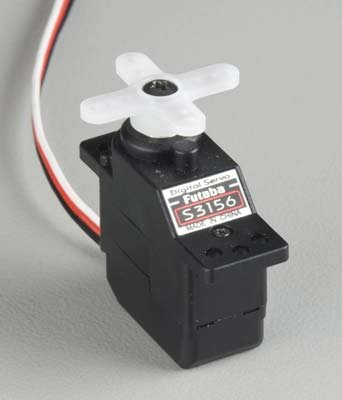

Futaba S3156 Servo Micro Digital Hi-Torque Metal Gear  [S3156]

TRAITS:

For small electric aircraft models

INCLUDES:

• Futaba S3156 servo, 0.79" (20mm) long 4-point horn, 1.6" (40mm) extremely long
• 4-point horn, 0.79" (20mm) diameter circular horn, four 2x11mm mounting sccrews

REQUIRES:

• Installing in model, linking linkage and connecting to receiver
• Purchase DUBM6924 if mounting equipment is necessary

SPECS:

• Torque: 28 oz-in (2.0 kg-cm) @ 4.8V
• 33 oz-in (2.4 kg-cm) @ 6V
• Speed: .13 @ 4.8V
• .11 @ 6V
• Size: 0.9 x 0.4 x 0.9" (22 x 11 x 22mm)
• body fat: .32 oz (9.3g)

REVIEWS:

• Avoid this servo with fuel powered models or models requiring high torque.
• Don't satisfy or satisfy or go above 6V supply voltage or take advantageous asset of high load to servo.
• Do perhaps not utilize standard size servo horns. Use horns created restricted to micro servos.
• For replacement horns use component figures FUTM2005 or FUTM2038, they can fit really tight none the less they works.
