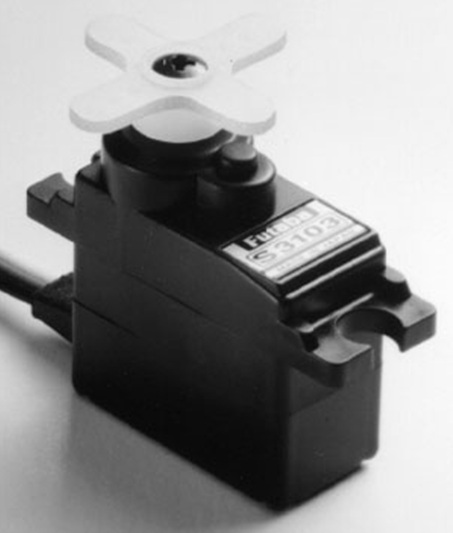

Futaba S3103 Servo Micro Mini  [S3103]

This is actually the S3103 Micro Mini Precision Servo
Designed to be used with Futaba broadcast Control Systems.
This Servo Takes the positioning regarding the S133 Servo and possesses Less Torque.

This servo trigger high-current draw from your own batteries.
If using NiMH or Li-Po batteries, get them to capable
of delivering enough Amps.

QUALITIES: Tiny Compact Design for Small Electrical Motor Airplanes.
3-pole motor

INCLUDES: One S3103 Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings) FUTM23500

SPECS: Speed: .11 sec/60 deg @ 4.8V - .09 sec/60 deg @ 6V
Torque: 17 oz/in @ 4.8V - 21 oz/in @ 6V
1.2 kg/cm @ 4.8V - 1.5 kg/cm @ 6V
Length: 23mm (.9")
Width: 10mm (.4")
Height: 20mm (.8")
Weight: 9.5g (.3oz)

OPINIONS: The S3103 Servo may possibly not be present combination with Gasoline engine Airplanes and
with big Gliders and various variants that need Torque.
The Utilizing a big Load at a top Power Supply Voltage Will Shorten-
the make use of life. (4.8V Recommended)
The Accessory Servo Horn is perfect for utilize using this Servo just.
Conventional Servo Horns May Not Be Used. Always use the Special
Servo Horn.
ir/jl
9-15-00 UPDATE
The latest circulation associated with the sevos are now actually coming with white servo arms, which
some consumers may mistake for Hitec. They're not Hitec. They look like they
will fit, however the client operates the likelihood of stripping the production shaft if
they attempt to utilize them on Hitec.
