Futaba S3101 Servo Micro Precision  [S3101]

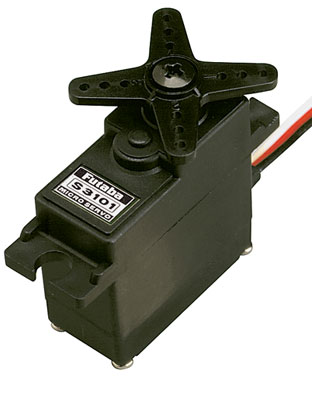

here is the Futaba S3101 Micro servo that replaces the S133.
TThis servo is utilized for aircraft or where the littlest servos are expected.

This servo may cause high-current draw from your batteries.
If using NiMH or Li-Po batteries, cause them to become capable
of delivering enough Amps.

It's nylon gears 3-pole engine, and an oilite bushing.
Futaba products and services have actually actually in fact in fact a 1-Year Warranty against defects w/material & workmanship

SPECS Speed: .18sec/60 deg @ 4.8V - .14sec/60 deg @ 6V
Torque: 35 oz/in @ 4.8V - 43 oz/in @ 6V
2.5 kg/cm @ 4.8V - 3.1 kg/cm @ 6V
Length: 1.1" (28mm)
Width: 0.5" (13mm)
Height: 1.2" (30mm)
fat: 0.6 ounce (17 grams)
Connector: "J" kind with about 5" cable

INCLUDES: One S3101 micro servo with pre-installed "x" servo horn
Two steel eyelets
Two black colored colored circular plastic grommets
Two servo mount screws
Two servo horns (1 round, 1 "X" and 1 straight)
NOTE: for extra servo horns utilize FUTM1985

REVIEWS: ins (millimeters) .54 (13.6) flange to
Side view: 1.17 (29.7) __?-------�__ top of
bottom to top ? ? shaft
of situation (maybe not ? ? .85 (21.5) flange to
output shaft) �________? base of
1.1(28) servo

Top view: we ?-----------?
.51(13) ) * (
we ?-----------?
1.38(35)
center-to-center of holes
6/6/95axy
9-15-00 UPDATE
The latest delivery for the sevos come in reality coming with white servo arms, which
some clients may mistake for Hitec. They are perhaps not Hitec. They look like they
will fit, nevertheless the consumer runs the probability of stripping the production shaft if
they you will need to utilize them on Hitec.
