HOBBYWING EzRun 4274/4268 - 30402500  [HW-30402500]

Tall Torque

The 4 pole design will guarantee the motor in order to make big levels of torque,
a quicker acceleration reaction and an extremely stable manufacturing of capacity to the drivetrain.

Tall effectiveness

Hobbywing’s heat control technology wound up being certainly made to protect the motor
from being damaged by heat consequently less heat better the motor will run and
perform. The production performance with this engine has an efficiency price completely to 90percent
and so in the event power utilizing the motor reaches 1000 watts your assured
that 900 watt with this particular power is available contrary to public opinion.

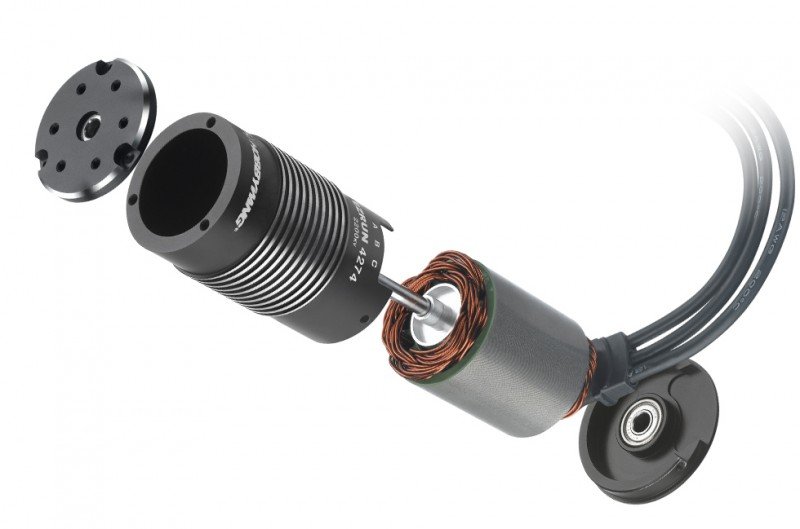

Great Construction

The motor housing is constructed of hard anodized aluminum, motor windings are
wound from pure oxygen-free dual insulated copper cable, the larger level rotor
framework was made to undertake hot through usage of uncommon earth
magnets, production shaft from quality refined alloy metal plus the imported
bearings which are implemented are high precision metal caged the absolute minimum
to zero friction that'll guarantee power, outstanding performance,
high durability and smoothness in regards to the engine.

Suitable (aided by the EZRUN MAX8 ESC)

When combining the EZRun 4274 engine along with Hobbwing EZRun MAX8 (150amp) ESC,
the superb match between ESC and motor gives you big torque plus an exceptionally
smooth and linear energy musical business.

Item Specification

Type

• Scale : 1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Pole Count : 4

Relevant Parameters

• KV Rating : 2200
• LiPo Cells : 2-6S
• No-load Current(A) : 5
• Max. Energy Output(W) : 3000
• Current on aim of Max. Energy Output(A) : 120A

Size & Weight

• O.D.(mm) : 42.0(1.654in)
• Length (mm) : 74.0(2.913in)
• Shaft Diameter (mm) : 5.0(0.196in)
• fat (g) : 418(14.745oz)

Other Parameters

• Timing : 0
• Applications : 1/8^th Monster Trucks/Trucks
