HOBBYWING EzRun MAX10 SCT - 30102601  [HW-30102601]

Tall Reliability & Durability

Built with tough and top-quality elements and along side
cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched energy and satisfaction also for
numerous hardcore of rushing applicatinos, additionally it is responsive sufficient to shield itself from
damage considering overloading considering genuine punishment, overuse and particular blunder.

Advanced and Secure Electronic Switch

The MAX10 SCT features a power switch with a lifespan of over 50000 on/off rounds,
housed in an entirely waterproof, dust-prood and shock-resistant design.

Applicable to everyone Weather Conditions

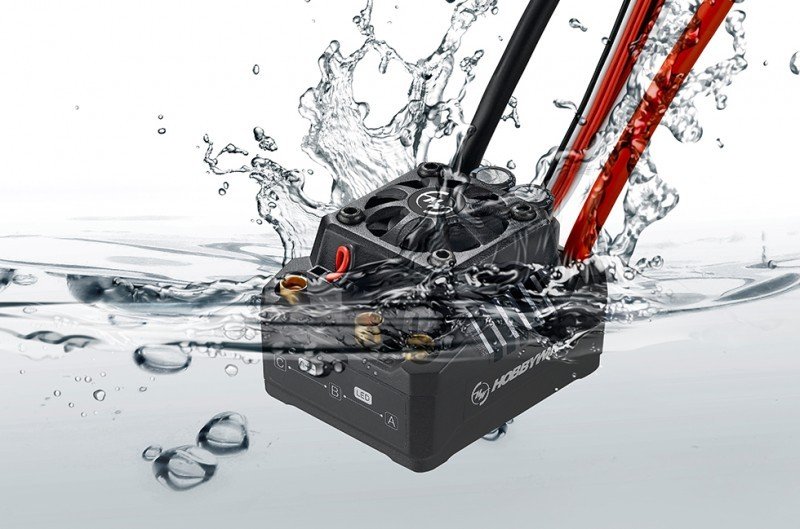

The waterproof and dust-proof design enables the MAX10 SCT become found in every environment
minus the dilemma of damage triggered towards the ESC from water or dust.

Revolutionary Filter Capacitor Thermal Protection

The filter capacitor thermal safety and health first accustomed the MAX10 SCT will efficiently protect
capacitors from exploding and causing irreversible injury to the ESC as a result of overload.

Regular Firmware Updates
without Charge

You can upgrade the MAX10 SCT as a result of HobbyWing
USB LINK computer software, a multifunction LCD system package
and a mobile computer. HobbyWing updates its ESC firmware
regularly giving you upgraded features more regularly
whenever available.

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : Yes

Specifications

• Cont./Peak Present : 120A/830A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC Output : modification Mode:6V/7.4V,4A

Wires & Connectors

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : 25.0x25.0x10.0mm
• Voltage Number : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 49.0x39.5x34.7mm
• Weight : 105g
