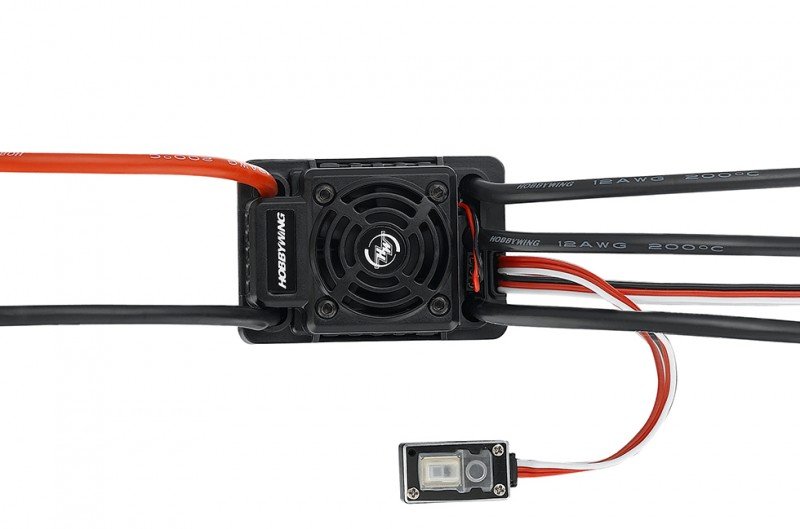

HOBBYWING EzRun WP SC8 - 81010400  [HW-81010400]

Tall Reliability & Durability

Reliable equipment with higher-level pc software technology allows
the EZRUN WP-SC8 never to just offer high power production along with
overload protection of ESC circuit.

Strongly related any or all Weather Conditions

The waterproof and dust-proof design allows the MAX10 become used in almost any environment
without dilemma of damage caused on ESC from water or dust.

Great Flexibility & Versatility

With the strong torque and exceptional manufacturing, the EZRUN WP-SC8 can
absolutely attract the capability hungry needs that specialist motorists require.
The severely adjustable parameters of ESC enables motorists to possess enjoyment from
smooth throttle effect the moment the throttle/brake
linearity is utmost required.

Integrated BEC

The integral switch mode BEC with a maximum production of 6Amp and voltage
of 6V know this ESC well suited for different servos.

Effective Cooling System

Hobbywing patented heat-conductive copper club target regarding energy board of
the EZRUN WP SC8,which can efficiently and efficiently get heat
in direction of included CNC machined billet aluminum heat sink housing,
with reticulate heatsink and superior cooling fan will keep your ESC
as cool as you are able to.

Methods for ESC Programming

Multiple selections for ESC development supported:
fundamental settings via SET key concerning the ESC,
advanced level settings via Light-emitting Diode system box/multifunction LCD system field
& Hobbywing USB LINK pc software.

Regular Firmware Updates
----Free of Charge

You can upgrade the EZRUN WP SC8
along with the Hobbywing USB LINK pc software,
a multifunction LCD system industry and a mobile computer.
Hobbywing updates its ESC firmware frequently providing you
upgraded features with greater regularity whenever available.

Item Specification

Type

• Scale : 1/10^th、1/8^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SL
• Waterproof : WP

Specifications

• Cont./Peak Present : 120A/760A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC manufacturing : modification Mode:6V/3A

Wires & Connectors

• Input cables : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-200mm*3
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 30.0x30.0x10.0mm
• Voltage Amount : 5-7.4V
• Powered by : operating on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : FAN/Program Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 59.0x38.0x34.0mm
• Weight : 113g
