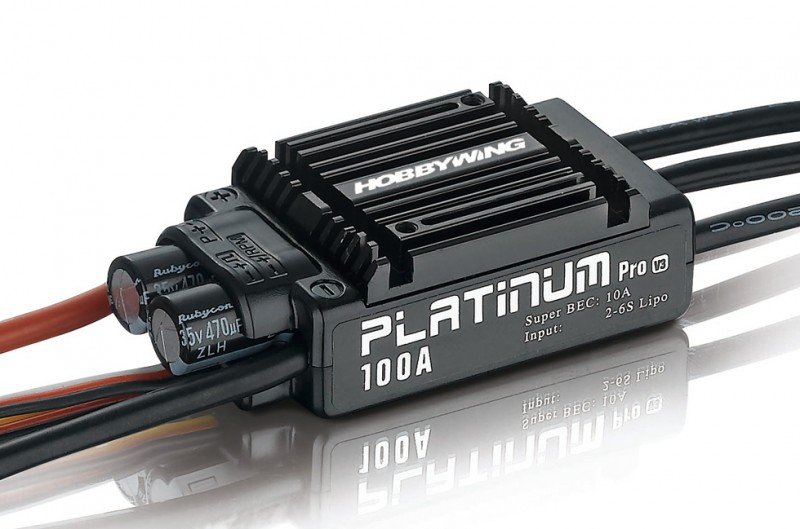

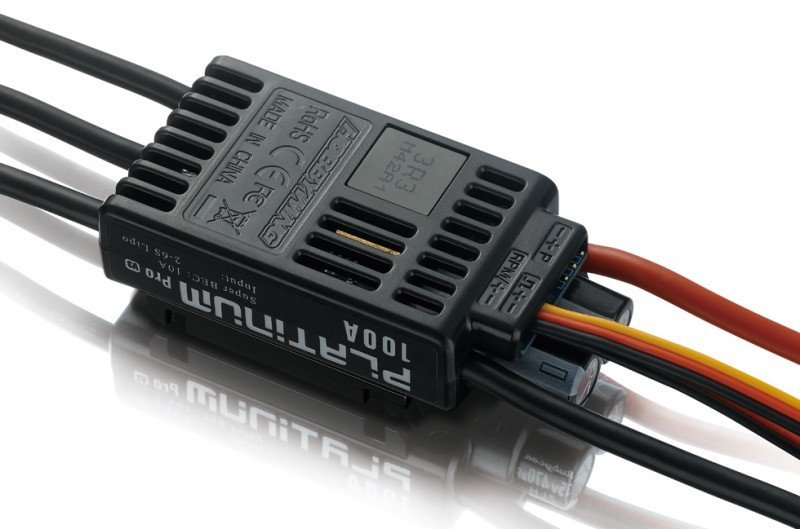

HOBBYWING Platinum 100A V3 - 30203900  [HW-30203900]

Groundbreaking Design & exemplary Performance

New framework design and superior micro-processor
guarantees users efficient heat dissipation, good compatibility (with various devices),
high driving effectiveness, and an such like.

Great power Output

This Platinum 100A V3 ESC featuring a frequent present of 100A
and top up-to-date as high as 150A guarantees users high and stable manufacturing
regularly during each journey.

High Voltage Built-in BEC

The included switch mode BEC with a voltage adjustable among
6.0V/7.4V/8.4V, a continuous present of over 10A and top present of 25A
provides adequate power the servos to utilize efficiently.

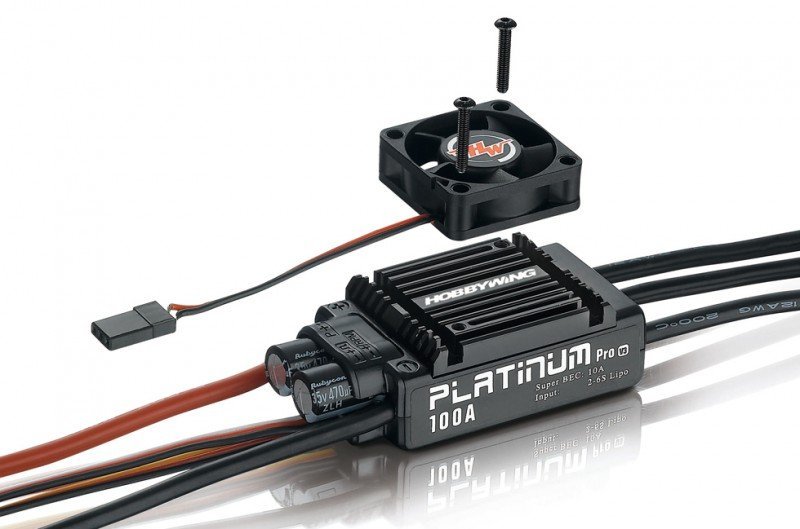

Effective Heat-dissipating System

Besides the heatsink on Platinum 100A V3, an additional cooling
fan is roofed in item industry to enhance cooling performance (consumers can arrange it
onto ESC heatsink if needed).

Four Flight Modes & “Auto Restart” Function

This Platinum 100A V3 ESC featuring “Fixed-wing/Helicopter (Linear
Throttle)/Helicopter (Elf Governor)/Helicopter (store Governor)” four
trip modes and “Auto Restart (Time)” function guarantees users exceptional
speed-governing performance in Heli Governor mode and allows users to cutoff production and restart
motor for avoiding feasible crash due to bad procedure.

A few Protections

Multiple safety features have actually in fact irregular input voltage,
ESC thermal, throttle indication loss (or Fail secure), and low voltage cutoff
effortlessly prolongs the right solution is life from the ESC.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : Regular

Specifications

• Cont./Peak Present : 100A/150A
• Input : 2-6S LiPo
• BEC production : modification Mode:6V/7.4V/8.4V,10A

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : 4.0mm silver Connectors (Female)

ESC Programing via

• Transmitter : Supported
• LED Program Card : perhaps not Supported
• LED Program Box : not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : particular system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 70.0x35.0x21.0mm
• Weight : 104g
