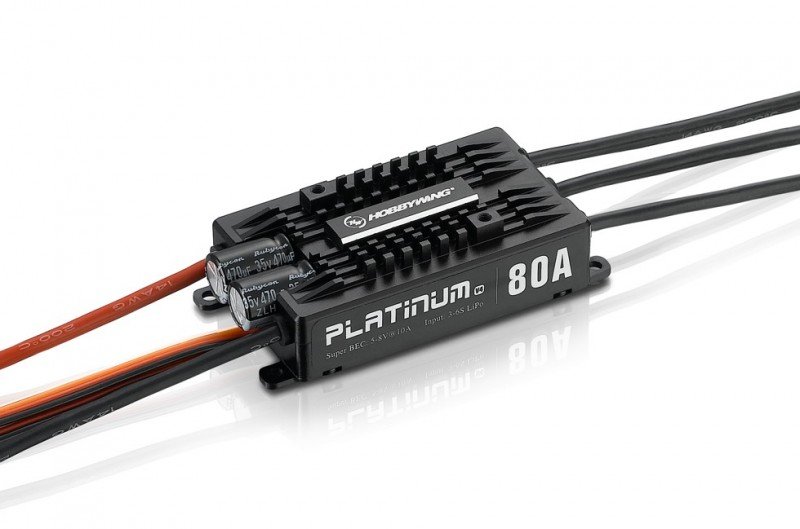

HOBBYWING Platinum 80A V4 - 30203200 [HW-30203200]

Price:

CAD$0.00

Brand:

Hobbywing

Model:

HW-30203200

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Aircraft ESC / BEC category

Write a review

alt="HOBBYWING Platinum 80A V4 - 30203200" title="HOBBYWING Platinum 80A V4 - 30203200"

Description

Super smooth Start-up

Platinum V4 serial things allows the motor to begin with acutely smooth
and prevents tail-drift conditions that helicopters experience. The start-up time
is adjustable from 8 to 25 moments, this might positively produce an amazing
start point for each journey.

Exemplary motor Speed Governing

High-performance 32-bit processor with a prossesing regularity of 72MHz as well as
higher rate algorithm optimizes the cost governing. Using the adjustable governor
parameters it will guarantee every pilot a defined and efficient control experience.

Other Features

A split system slot allowing you to connect programmer using this type of ESC permits individual to
● Program ESC,
● check journey information consist of minimal voltage, optimum temperature, standardized RPM and
cost fold (in Heli Governing store mode) of trip parameters recorded by the ESC,
●Upgrade ESC firmware with a mutifunction LCD system package or a WiFi Module & our
Apple/Android phone App.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional
Brake and Reverse Brake” four stopping system modes. The stopping system quantity is adjustable in
normal braking system mode; in proportional braking system mode, the stopping system force might be
instantly selected good place of radio throttle stick; backwards
stopping system mode, the motor rotation are changed via an additional transmitter channel.

Product Specification

Type

Brushed/Brushless : BL
High Voltage/Regular : Regular

Specifications

Cont./Peak Present : 80A/100A
Input Voltage : 3-6S LiPo
BEC manufacturing : modification Mode:5-8V,10A

Wires & Connectors

Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
Output cables : Black-12AWG-100mm*3
Input Connectors : No
Output Connecotors : 4.0mm silver Connectors (Female)

ESC Programing via

Transmitter : not Supported
LED Program Card : maybe not Supported
LED Program Box : perhaps not Supported
LCD Program Box : Supported
WiFi Module : Supported
Program Port : certain system Port
