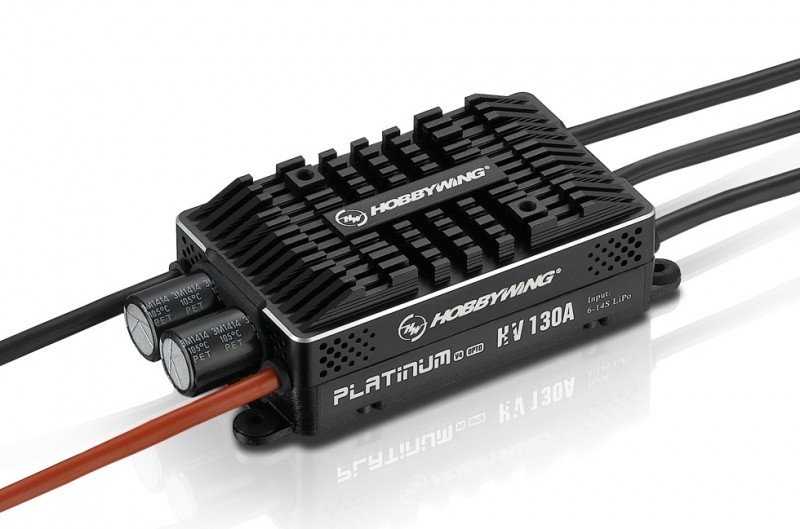

HOBBYWING Platinum HV 130A OPTO V4 - 30209201  [HW-30209201]

Super smooth Start-up

Platinum V4 serial things allows the motor to start with exceedingly smooth and prevents tail-drift
conditions that helicopters experience. The start-up time is adjustable from 8 to 25 moments,
this could truly produce an incredible start up point for every single journey.

Excellent Motor Speed Governing

High-performance 32-bit processor with a practical regularity of 72MHz with
higher-level algorithm optimizes the price governing. Alongside the adjustable
governor parameters guarantee every pilot a defined control experience.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four stopping system modes. The braking system quantity is adjustable in normal
braking system mode; in proportional braking system mode, the braking system force may be instantly
allotted great host to radio throttle stick; backwards stopping system mode, the
engine rotation could possibly be changed via another transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : high Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC production : No

Wires & Connectors

• Input Wires : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : maybe not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : perhaps not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : specific system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 154g

Applications
