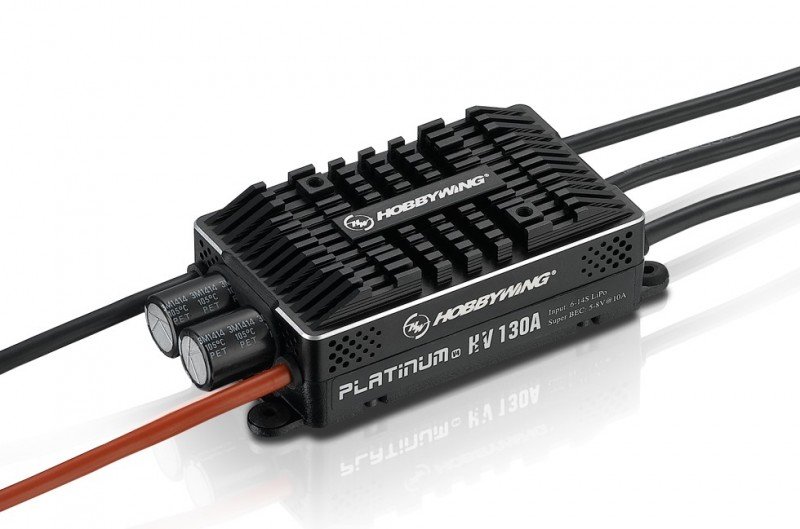

HOBBYWING Platinum HV 130A V4 - 30209200  [HW-30209200]

Super Soft Start-up

Platinum V4 serial products permits the motor to start acutely smooth and prevents tail-drift
conditions that helicopters experience. The start-up time is adjustable from 8 to 25 moments,
this may undoubtedly produce outstanding kick off point for each journey.

Excellent engine Speed Governing

High-performance 32-bit processor with a working regularity of 72MHz together with
advanced level algorithm optimizes the cost governing. Alongside the adjustable
governor parameters guarantee every pilot an exact control experience.

Tall Voltage included BEC

The integrated switch mode BEC with an adjustable voltage consist of 5V to 8V, a consistent up-to-date of
over 10A and top present of 25A will offer you enough power for the servos to make use of effortlessly.

Four Brake Modes

This Platinum 80A V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake
and Reverse Brake” four stopping system modes. The stopping system volume is adjustable in normal
brake mode; in proportional braking system mode, the braking system force will probably be immediately
allotted good position of radio throttle stick; backwards stopping system mode, the
motor rotation could possibly be changed via a supplementary transmitter channel.

Product Specification

Type

• Brushed/Brushless : BL
• High Voltage/Regular : high Voltage

Specifications

• Cont./Peak Present : 130A/160A
• Input Voltage : 6-14S LiPo
• BEC production : modification Mode:5-8V,10A

Wires & Connectors

• Input cables : Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output cables : Black-12AWG-100mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : perhaps not Supported
• LED Program Card : perhaps not Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : certain system Port

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 101.0x45.5x27.0mm
• Weight : 169g
