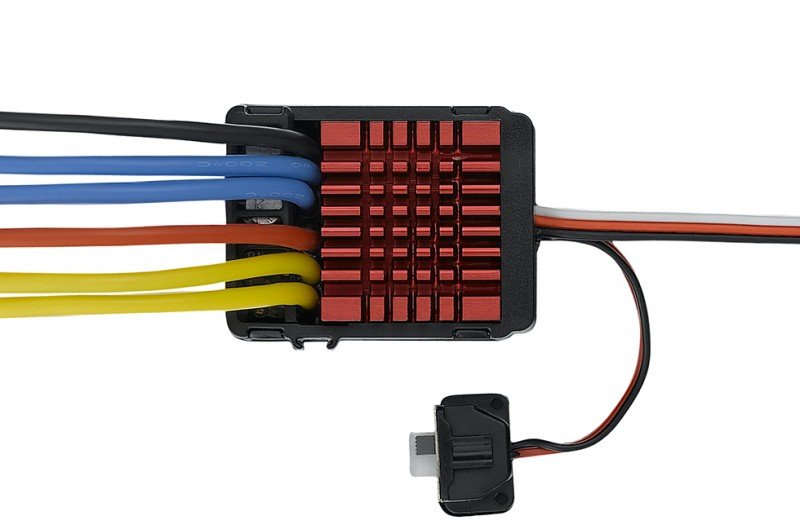

HOBBYWING QuicRun WP 860 Dual Brushed - 30105400  [HW-30105400]

Effortless Operation

This ESC is very created for fresh novices and intermediate modelers;
it not simply holds ahead the outstanding quality of HOBBYWING products
but simplifies the process.

Applicable to any or all or any or any or any or any Weather Conditions

The waterproof and dust-proof design permits the QUICRUN WP-860-Dual-Brushed
become contained in many climate without any problem of damage triggered
on ESC from water or dust.

Built-in BEC

The integrated switch mode BEC with a maximum manufacturing of 6Amp and voltage of 5V
appreciate this to ESC right for various servos.

A simple task to Use

This ESC features car throttle calibration and parameter environment
via jump caps is easy-to-use, specially relevant to unique novices.

Double Output

This ESC can drive two brushed devices too.
It’s affordable and highly relevant to low-speed crawlers and tanks which run two machines

Item Specification

Type

• Scale : 1/8^th、1/10^th
• Brushed/Brushless : Brushed
• Sensored/Sensorless : -
• Waterproof : WP

Specifications

• Cont./Peak Present : 60A/360A
• Input : 2-4S LiPo/6-12 Cells NiMH
• BEC production : change Mode:5V/3A

Wires & Connectors

• Input cables : Red-16AWG-150mm*2/Black-16AWG-150mm*1
• Output cables : B lue-16AWG-100mm*2/Yellow-16AWG-100mm*2
• Input Connectors : No
• Output Connecotors : 4.0 Bullet Connectors (Female)

Fan

• Size : 25.0x25.0x10.0mm
• Voltage Amount : 5-7.4V
• Powered by : running on BEC

ESC Programing via

• SET Button on ESC : perhaps not Supported
• LED Program Box : not Supported
• LCD Program Box : not Supported
• WiFi Module : perhaps not Supported
• Program Port : Dip Switch

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 46.0x36.0x26.3mm
• Weight : 73g

Applications

• Motors : Brushed Motors
• Vehicles : 1/8^th, 1/10^th Touring Cars/Buggies/Trucks//Rock Crawlers
• KV Rating/T Count : 2S LiPo: T≥12T
  3S LiPo: T≥18T
  4S LiPo: T≥24T
  (540/550/775 Size devices)
