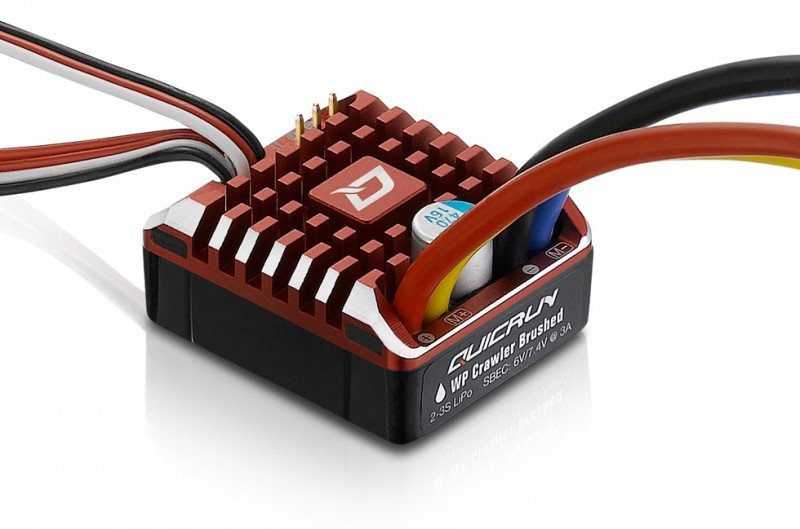

HOBBYWING QuicRun WP Crawler Brushed - 30112750  [HW-30112750]

Special Design for 1/10^th, 1/8^th Crawlers

The dependable gear together with effective software (features a range of
programmable parameters like begin force, drag stopping system price, and etc.)
produces a great energy way of 1/10^th, 1/8^th rock crawlers.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology

The adjustable PWM regularity alongside higher level DEO/freewheeling technology
guarantees users great throttle linearity and driving feel.

Tightly related to any or all Weather Conditions

The waterproof and dust-proof design allows the WP-Crawler-Brushed
become employed in numerous climate conditions without any issue of
damage triggered toward ESC from water or debris.

Exceptional Braking Performance

Hobbywing's revolutionary, fine-tunable drag stopping system cost and adjustable drag stopping system and stopping system force
significantly enhance the brag stopping system and invite users to really have the exceptional braking performance.

Super Internal BEC

The included switch mode BEC with a maximum manufacturing of 6A and voltage
adjustable between 6V and 7.4V licenses using various standard servos,
high voltage servos and also other peripherals.

15 Programmable Parameters

The WP-Crawler-Brushed, which features 15 programmable parameter services,
does relate solely to various vehicles and songs.

Individual Programming/Fan Port

The split PRG/FAN slot on ESC can power another fan to improve ac
performance or link the ESC to a Light-emitting Diode system industry for ESC development.

a Light-emitting Diode Program Box is Included

A standard, committed Light-emitting Diode system industry (within the package) allows users to
prepare the WP-Crawler-Brushed effortlessly.

Item Specification

Type

• Scale : 1/8^th & 1/10^th
• Brushed/Brushless : Brushed
• Waterproof : Waterproof

Specifications

• Cont./Peak Present : 80A/400A
• Input Voltage : 2-3S Lipo/5-9 Cell NiMH
• BEC production : change  Mode: 6V/7.4V@3A

Wires & Connectors

• Input Wires : Red-14AWG-200mm*1 / Black-14AWG-200mm*1
• Output cables : Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
• Input Connectors : XT60 Connectors
• Output Connectors : No

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : maybe not Supported
• WiFi Module : not Supported
• Program Port : specific system Port

Firmware

• Firmware Upgrade : maybe not Supported

Size & Weight

• Size : 36.2x31.6x17.0mm
• Weight : 58.5g (w/Wires)

Applications

• Motors : Brushed motor (540/550/775 size devices)
• Vehicles : 1/8^th,1/10^th Rock Crawlers
• KV Rating/T Count : Brushed motor limitation with 2S LiPo/6S NiMH: ≥10T or RPM<[email protected]
  Brushed Motor Limit with 3S LiPo/9S NiMH: ≥16T or RPM<[email protected]
