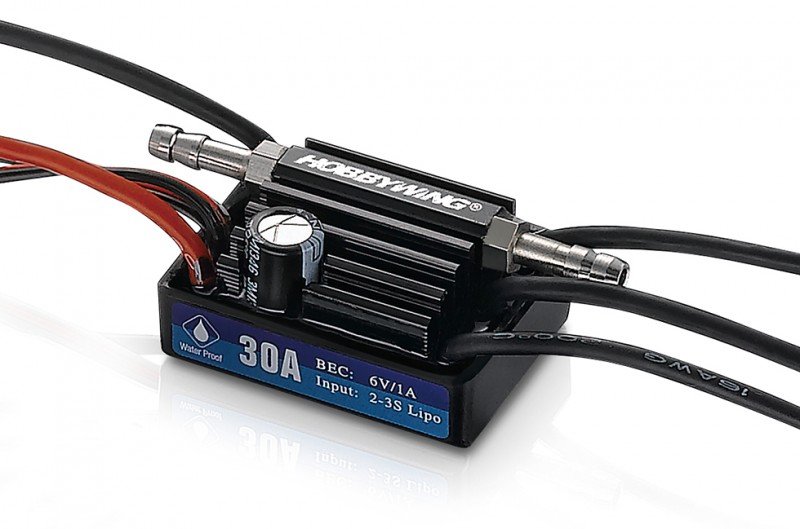

HOBBYWING Seaking 30A V3 - 30302060  [HW-30302060]

Effectiveness & Reliability

Built with top-notch elements plus along side cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
many safety adjustable options might present in use,
with the use of the low-voltage cutoff protection,
thermal protection and throttle indicator loss safety.

Effective Cooling System

The Hobbywing patented heat-conductive copper club target regarding the power board of
the Seaking 60A V3.1 can efficiently and effectively get temperature towards included CNC machined
billet aluminum water cooled temperature sink housing hence keeping
your ESC as cool as you possibly can.

Waterproof Design

100percent waterproof with no need of extra security.

Built-in BEC

The integrated switch mode BEC with an optimum manufacturing of 6Amp and
voltage of 6V understand just why ESC appropriate high voltage servo.

Original Algorithm Design

The unique algorithm implemented in ESC end in the acceleration
more amazing and cruising more stable.

Individual PRG/FAN Port

The split PRG/FAN slot towards ESC can connect ESC to an exercise program
industry (via the trio-color development cable) and commence ESC development.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 30A/180A
• BEC manufacturing : Linear Mode:6V/1A

Wires & Connectors

• Output cables : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : perhaps not Supported
• WiFi Module : not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : not Supported

Size & Weight

• Size : 54.5x28.3x18.7mm
• I.D./O.D. of fluid Cooling Pipe : Ф2.0/4.0 mm
• Weight : 41g

Applications

• Boat Length <45cm
