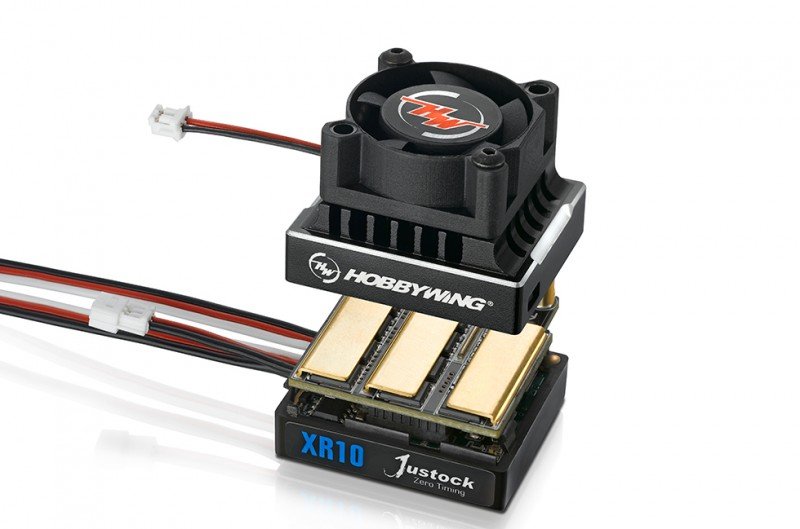

HOBBYWING XeRun XR10 Justock - 30112000  [HW-30112000]

Zero-timing Design

The XR10 JUSTOCK ESC is manufactured specially
for Zero-timing rushing program. Its timing system has
been entirely set to ZERO level. Utilizing the
exact same branded motor and winding can quickly ensure
every racer has comparable power system for
100percent reasonable and competitive competition.

High Reliability & Durability

Reliable gear and advanced level computer software
technology enables the XR10 JUSTOCK never to simply
provide high energy manufacturing, but additionally overload
safety with this specific ESC circuit.

High efficient Heat
Dissipating System

The modified heatsink, which escalates the
area, along side HOBBYWING
patented copper heat-conductive meals which
are connected to the MOSFET board allows the
inside temperature become quickly employed in the
heatsink for dissipation. Utilising the
high-performing removable cooling fan, a
highly dependable temperature transfer system for
maximum cooling is accomplished.

Tiny Footprint

With its compact design, the XR10 JUSTOCK fits
many framework from 1/10th touring automobiles, 1/12th pan
automobiles and F1.

Regular Firmware Updates complimentary
of Charge

You can upgrade the XR10 JUSTOCK utilizing the Hobbywing USB
LINK computer programs, a multifunction LCD system package and a mobile computer.
Hobbywing updates its ESC firmware often giving you
upgraded features more frequently whenever available

Item Specification

Type

• Scale : 1/10^th
• Brushed/Brushless : BL
• Sensored/Sensorless : SD
• Waterproof : No

Specifications

• Cont./Peak Present : 60A/380A
• Input : 2-3S LiPo/6-9 Cells NiMH
• BEC production : 6V@2A

Wires & Connectors

• Input cables : Blue-14AWG-200mm*1/Black-14AWG-200mm*1
• Output cables : Red-14AWG-200mm*1/Yellow-14AWG-200mm*1/Orange-14AWG-200mm*1
• Input Connectors : No
• Output Connecotors : No

Fan

• Size : 25x25x10mm
• Voltage amount : 5-8.4V
• Powered by : operating on BEC

ESC Programing via

• SET Button on ESC : Supported
• LED Program Box : Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Programming Wire : Programming/Throttle Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 33.0x28.0x31.5mm
• Weight : 46g

Applications

• Motors : SL BL Motors
  SD BL Motors
• Vehicles : 1/10^th,1/12^thTouring Car/Buggy tournaments (especially stock Class)
• KV Rating/T Count : 2S LiPo: 1/10^th Touring Cars≥8.5T, 1/10^th Buggies≥11.5T
  3S LiPo: 1/10^th Touring Cars≥13.5T, 1/10^th Buggies≥17.5T
  3650 Motors
