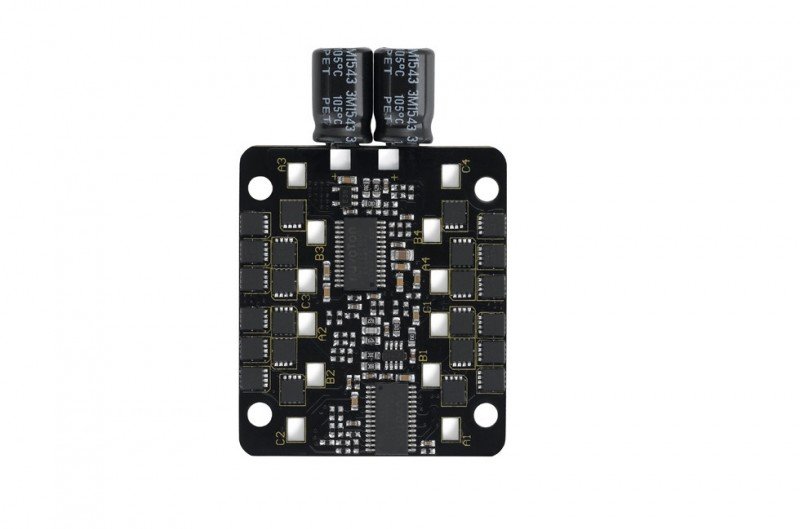

HOBBYWING Xrotor 20A 4IN1 Micro - 30901065  [HW-30901065]

Clearly Integrated

This XRotor 4IN1 Micro ESC not simply includes 4 superior 20A ESCs,
1 integral BEC, but additionally production ports for powering peripherals like FC, digicam,
and a slot for FC checking present and voltage straight away. The vital
framework makes the installation and wiring quick and easy clean.

Direction Reversal via TX

Rotation approach to each motor are set via transmitter.
This saves the situation of re-soldering/re-connecting after connected/soldered devices to
the ESC freely and discovered motor runs backwards.

Quality Components

The using top end 32-bit supply processors
(aided by the operating regularity since high as 48MHz),
fundamental drive ICs, brought in quality MOSFETs,
3-ounce copper and 6 levels of PCBs guarantees less temperature,
greater effectiveness and rapider impact.

Oneshot125, Oneshot42 & Multishot Modes set!

This Xrotor 20A 4IN1 Micro ESC not only supports
regular throttle signals (using the regularity completely to 621Hz),
Oneshot125 (125-250μs) high-speed throttle signals
(utilizing the real-time regularity simply because high as 3.8KHz),
and Oneshot42 (42-81μs) and Multishot (2-25μs) super
advanced level throttle signals. This will make connection
between FC and ESC more agile, throttle linearity smoother,
and throttle response rapider.

DEO Technology/Active Freewheeling

The DEO (Driving effectiveness Optimization) technology
used inside ESC has numerous advantages:
● Active braking. Whenever reducing the throttle quantity, the engine will
decelerate quickly. This sort of function allows pilots to easier
perform all maneuvers like razor-sharp turns, altitude alterations,
and unforeseen braking.
● greater driving effectiveness, a lot longer journey time.
● Lower ESC heat and a much more dependable procedure.

Engine Lock-up Protection

This XRotor 20A 4IN1 Micro ESC lessens its production to engine instantly
about detects the motor shaft is locked up.

Splash-proof

The whole circuit board and all sorts of forms of sun and rain on
it had nano-coating therapy;
this might end up in the XRotor 20A 4in1 Micro ESC splash-proof.

Specifications

• Cont./Peak active : 20A×4/25A×4
• LiPo Cells : 3-4S LiPo
• BEC manufacturing : 5.3V/12V，3A

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : HW Special Program for FPVs
• ESC Programming : Supported
• Stick Programming : Transmitter
• DEO : Supported
• Throttle Range Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• Timing : perhaps not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 54x36x7mm
• Weight : 24.5g

Applications

• 130-280mm FPVs
