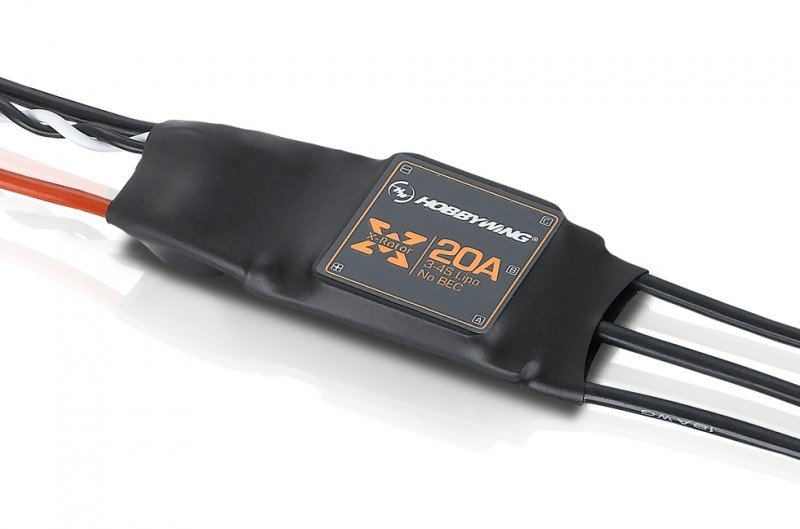

HOBBYWING XRotor 20A(Asian Version A) - 30901012  [HW-30901012]

Fast Throttle Response

Dedicated system for multi-rotor ESCs, which will be a lot better than various open-source
programs, notably improves throttle effect.

A facile task to Use

All settings except the "Timing (adjustable between high and Intermediate)"
are preset, making usage simple, excessively smart and adaptive.

Less alert Interference

The twisted-pair throttle indication cable efficiently decreases interruption produced
in alert transmission and makes journey more stable and dependable.

Super minimal Internal Resistance

Good quality MOSFETs utilized by this XRotor 20A ESC make
interior opposition low but current stamina high.

Super high Throttle Signal

Compatible with various flight-control systems and assists a
throttle indicator regularity completely to 621Hz.

Specifications

• Cont./Peak active : 20A/30A
• LiPo Cells : 3-4S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : Black-18AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)
• Throttle amount Calibration : Supported
• Stick Programming : Supported
• DEO : maybe not Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light colors : perhaps not Supported
• Motor Rotation : maybe not Supported

Size & Weight

• Size : 42.0x21.6x12.0mm
• Weight : 18.5g

Applications

• 330/450 Course Multirotors
