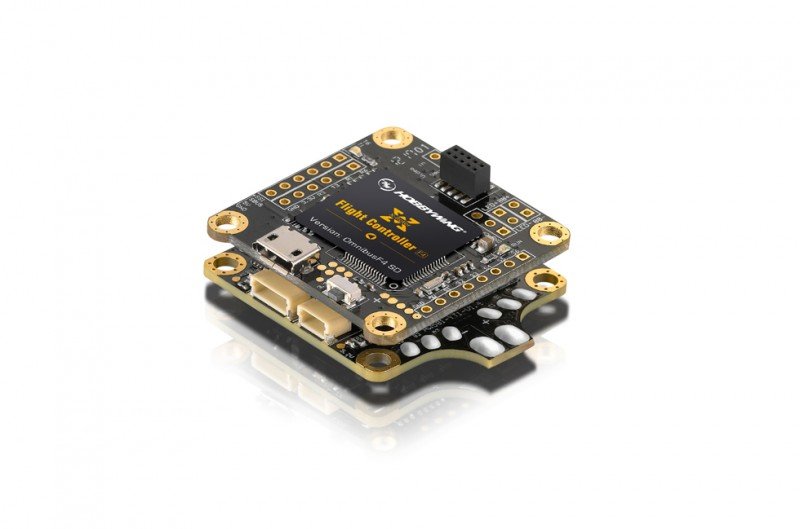

HOBBYWING XRotor Flight Controller F4 - 31001000  [HW-31001000]

Super-high running Frequency

The STM32F405 MCU which features the effective computing ability and super-high
operating regularity allows the FC to use the PID and gyro with greater regularity.

DShot 150/300/600/1200,
Oneshot125, Oneshot42,
Multishot Modes Supported

Besides the most recent Dshot 150/300/600/1200 mode, the FC
additionally supports the traditional PWM mode, Oneshot125 mode,
Oneshot42 mode and Multishot mode.

TF-card Insertion Supported

A TF-card are placed into towards FC to record and save more journey information,
allowing users to change their aircraft effortlessly.

Onboard OSD Microchip

Onboard OSD microchip enables users to
effectively adjust various (OSD) parameters via
the Betaflight/Cleanflight pc software.

BetaFlight/Cleanflight Firmware Ready

The FC which supports Betaflight/Cleanflight firmware & permits parameter adjustment via Betaflight /Cleanflight pc software is more tightly pertaining to FPV traveling & rushing.

Compatible(using the Hobbywing 4IN1 ESC&VTX)

It’s quite simple to wire and install whenever combining the FC with a Hobbywing 4-in-1 tower ESC &
a HOBBYWING VTX (Video Transmitter).

Item Specification

Basic Features

• Compatible with (Multirotors) : Quadcopters, hexacopters
• Firmware : OMNIBUSF4SD
• FC Programming : Supported
• Programming via : Betaflight/Cleanflight-configurator
• Compatible with (Modes) : PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Compatible with (Transmitters) : PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• OSD : Built-in
• Voltage Monitoring : Supported
• Current Monitoring : Supported
• External Buzzer : Supported
• LED Control : Supported
• TF-card : Supported (optimum: 32g)
• USB Port : MicroUSB

Size & Weight

• Size : 35*35mm
• Weight : 6g
