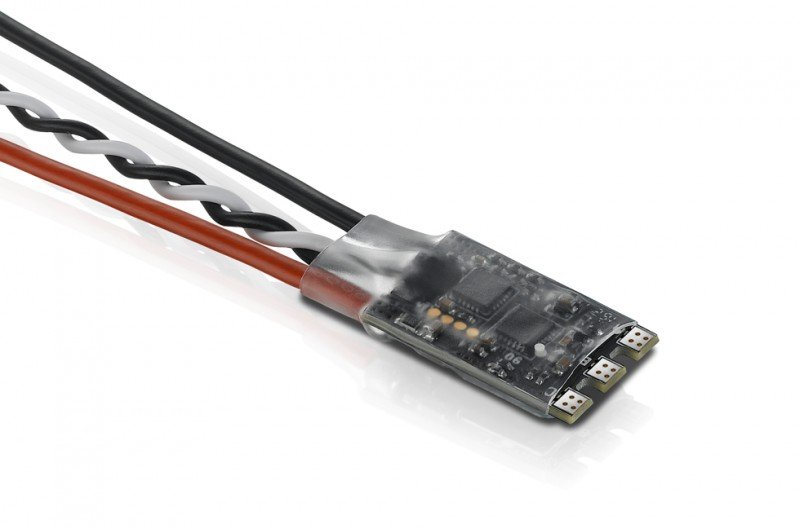

HOBBYWING XRotor micro 20A BLHeli - 30901066  [HW-30901066]

Super Small & Light

ESCs with exceptionally tiny size and lightweight are
specially designed for competition FPV drones.

Quality Components

The use of F396 48MHz MCU, introduced MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 quantities of PCBs and also other
quality elements guarantees less heat, greater effectiveness and rapider effect.

BLHeli Firmware Ready

Users can flash or upgrade the BLHeli firmware through the indication cable (on ESCs), and system 4 ESCs additionally after
linking their journey controller toward BLHeliSuite software in the event that journey controller employs the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the engine retardation and permits
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, journey a time temperature
dissipation. The ESCs assist OneShot125 high rate throttle
indication and regular throttle indication (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle indicator cable effectively decreases interruption stated in alert
transmission and makes the journey alot more stable and dependable.

Specifications

• Cont./Peak active : 20A/30A
• LiPo Cells : 2-4S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light colors : not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 24.0x13.9x5.5mm
• Weight : 7g

Applications

• FPVs with 130-280mm Diagonal Wheelbase
