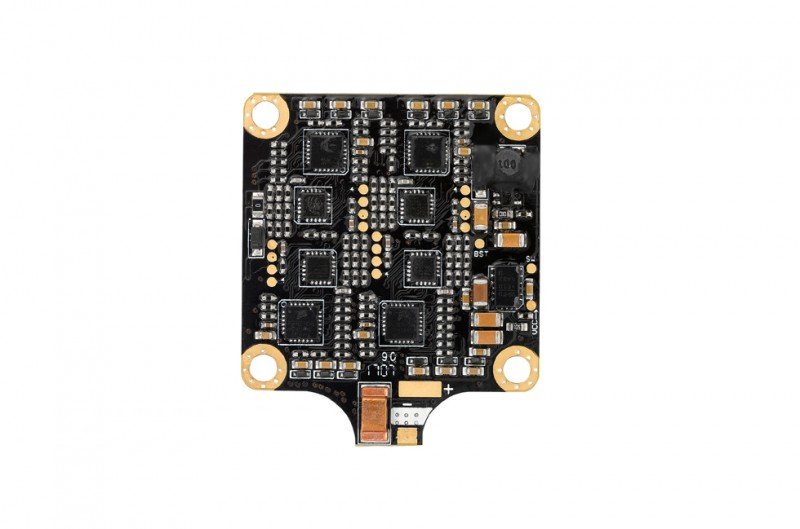

Exceptionally included & Compact
The 4-in-1 ESC not merely includes 4 superior 40A ESCs, 1 integral BEC,
and also an Amp/Volt monitoring slot enabling FC prize the volt & amp
immediately (on condition your FC supports this function); it’s just a
FC for FPV(s) and simple for installation and wiring. Using the remarkably small
size, it's outstanding match for competition FPV(s).
Top-notch Components
The usage of EMF8BB21F16G MCUs using the running regularity since high as
48MHz, introduced high-quality MOSFETs, 3-in-1 drive ICs and ceramic
capacitors, 3-ounce copper, and 6 degrees of PCBs guarantees less temperature,
greater effectiveness and rapider reaction.
BLHeli-S Firmware Ready
The ESC (with great performance and rich functions)
employs initial BLHeli-S firmware and supports adjusting
parameters or upgrading firmware via various strategies
(effortlessly put. via throttle sign cable with utilizing other development
board or a FC flashed using the cleanfight/betaflight firmware).
DShot150/300/600 Ready
Besides the standard PWM mode,
Oneshot125/Oneshot42/Multishot modes, the present day
DShot150/300/600 modes may also be supported. In
DShot150/300/600 modes, the ESC has great
anti-interference performance and fast response.
Hardware Generated PWM &
Damped Light Mode
The ESC firmware makes use of gear produced motor pwm for smooth
throttle reaction and quiet procedure. Damped light does regenerative
breaking, causing very quickly engine retardation, consequently inherently additionally
does active freewheeling.
Specifications
- Cont./Peak active : 40Ax4/50Ax4
- Input Voltage : 2-5S Lipo
- BEC production : 5V & 1.5A
Wires & Connectors
- Input cables : Red-14AWG-130mm / Black-14AWG-130mm
- Output Wires : No cables but solder tabs
- Input Connectors : XT60 (w/ cables Soldered on)
- Output Connectors : No
- Firmware : BLHeli-S A-H-50 16.5
- ESC Programming : Stick Programming, BLHeliSuite
- Stick Programming : Supported
- DEO : Supported
- Throttle volume Calibration : Supported
- Oneshot125 Mode : Supported
- Oneshot42 Mode : Supported
- MultiShot Mode : Supported
- DShot150/300/600 : Supported
- Timing : Supported
- Motor Rotation : Supported
Size & Weight
- Size : 42.6x36x4mm
- Weight : 10g
Applications
